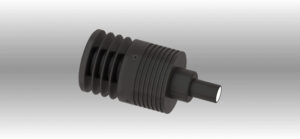

Spot Lights

Spot light is one type of LED machine vision lighting which used special optical lens design to increase the intensity , it is compatible with telecentric lens to get good image result in the machine vision application.

SBS-SPL Series Catalogue Download

♦ Light Structure

Spot light is a type of LED machine vision lighting which used special optical lens design to increase the intensity, it is compatible with telecentric lens to get high quality image results for the machine vision applications.

♦ Spectrum Distribution

♦ Applications the light be used for

• IC charecter inspection

• Mark points positioning

• LED wafer inspection

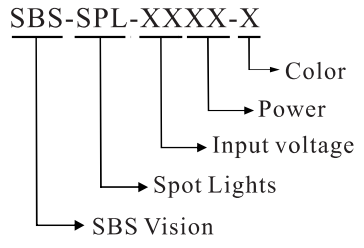

♦ Item No. Description

♦ Parameter

Item No.	Power comsuption (R)	Power comsuption (W,B,G)	Option	Extension Cables	Recommended Controller
SBS-SPL0501	5V/1.0W	5V/1.0W	Diffuser	1m/3m/5m	SBS-AC5 (analog controller)
SBS-SPL0503	5V/3.0W	5V/3.0W	Diffuser	1m/3m/5m	SBS-DC5 (digital controller)

♦ Dimensions (mm)


SBS-SPL0501	SBS-SPL0503

Spot Lights
