SBS-LSLHP series Catalogue

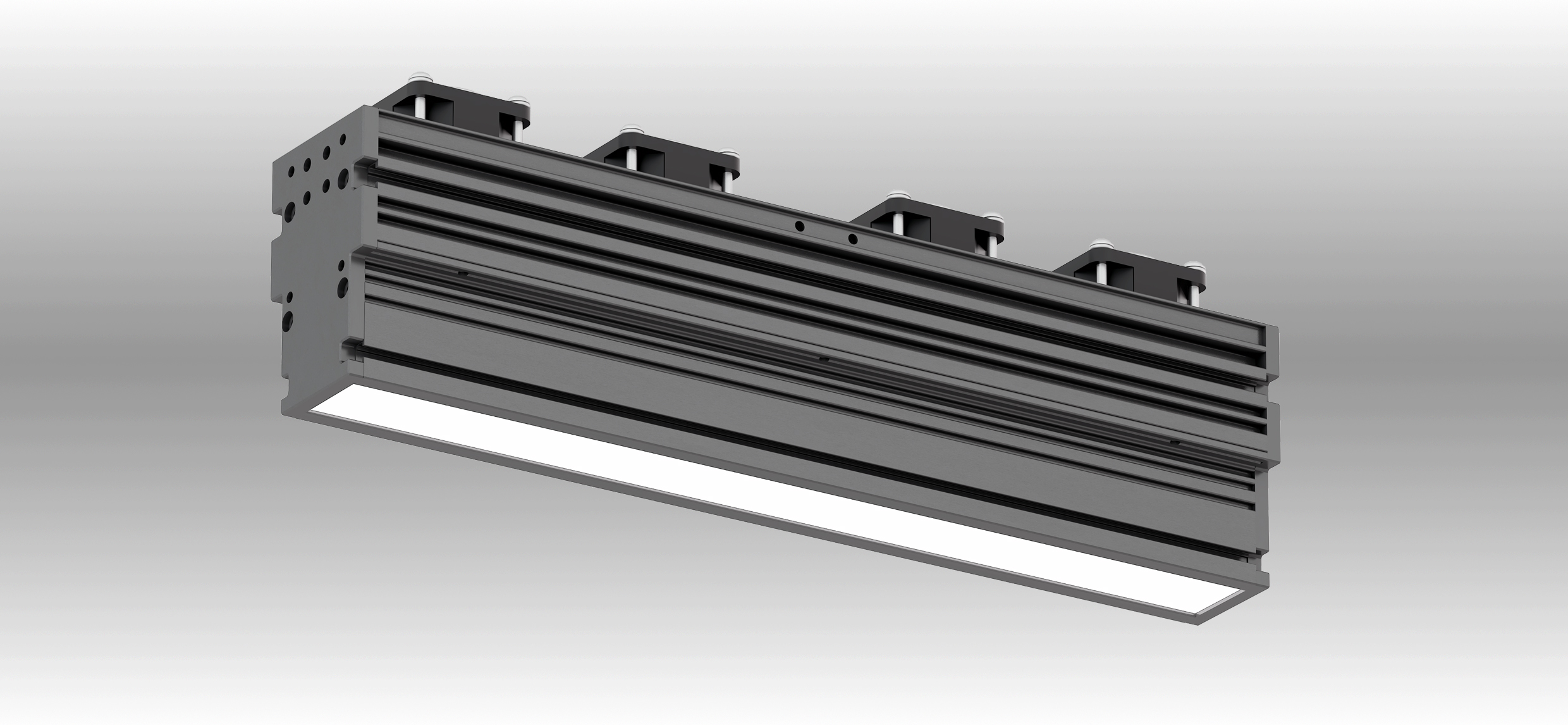

♦ Light Structure

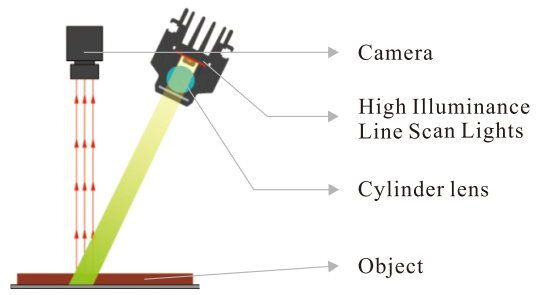

♦ High Power Line Scan Light Illumination Way
| High power line scan light is used special cylinder lens design to make the lighting coming out more foused, it can be used as low angel light for surface defects inspection. |
♦ Spectrum Distribution
♦ Machine Vision Applications
• Printing material defects inspection
• LCD surface defects inspection
• PCB solder joint and defects inspection
• Tobacco package box and shape detection
• Box selection in the logistic industry.

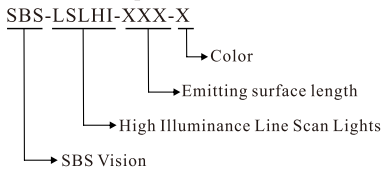

♦ Item No. Description
♦ Models
| Item | Model | Power consumption (R) |
Power consumption (W,B,G) |
Connector type |
Option | Extension cable | Recommended Controller |
| 1 | SBS-LSLHP50 | Recheck | 24V/16.0W | 3 Pin | Diffuser | 1m/3m/5m | SBS-DCH24 |
| 2 | SBS-LSLHP100 | Recheck | 24V/33.0W | 3 Pin | Diffuser | 1m/3m/5m | or SBS-DCH48 |
| 3 | SBS-LSLHP150 | Recheck | 24V/50.0W | 3 Pin | Diffuser | 1m/3m/5m | |
| 4 | SBS-LSLHP200 | Recheck | 24V/67.0W | 3 Pin | Diffuser | 1m/3m/5m | |
| 5 | SBS-LSLHP250 | Recheck | 24V/84.0W | 3 Pin | Diffuser | 1m/3m/5m | |
| 6 | SBS-LSLHP300 | Recheck | 24V/101.0W | 3 Pin | Diffuser | 1m/3m/5m | |
| 7 | SBS-LSLHP350 | Recheck | 24V/118.0W | 5 Pin | Diffuser | 1m/3m/5m | |
| 8 | SBS-LSLHP400 | Recheck | 24V/135.0W | 5 Pin | Diffuser | 1m/3m/5m | |
| 9 | SBS-LSLHP450 | Recheck | 24V/152.0W | 5 Pin | Diffuser | 1m/3m/5m | |
| 10 | SBS-LSLHP500 | Recheck | 24V/187.0W | 10 Pin | Diffuser | 1m/3m/5m | |
| 11 | SBS-LSLHP600 | Recheck | 24V/220.0W | 10 pin | Diffuser | 1m/3m/5m | |
| 12 | SBS-LSLHP700 | Recheck | 24V/253.0W | 10 pin | Diffuser | 1m/3m/5m | |
| 13 | SBS-LSLHP800 | Recheck | 24V/286.0W | 10 pin | Diffuser | 1m/3m/5m | |
| 14 | SBS-LSLHP900 | Recheck | 24V/319.0W | 10 pin | Diffuser | 1m/3m/5m | |
| 15 | SBS-LSLHP1000 | Recheck | 24V/352.0W | 10 pin | Diffuser | 1m/3m/5m | |
| 16 | SBS-LSLHP1100 | Recheck | 24V/385.0W | 10 pin | Diffuser | 1m/3m/5m | |
| 17 | SBS-LSLHP1200 | Recheck | 24V/418.0W | 10 pin | Diffuser | 1m/3m/5m | |
| 18 | SBS-LSLHP1300 | Recheck | 24V/451.0W | 10 pin | Diffuser | 1m/3m/5m | |
| 19 | SBS-LSLHP1400 | Recheck | 24V/484.0W | 10 pin | Diffuser | 1m/3m/5m | |
| 20 | SBS-LSLHP1500 | Recheck | 24V/517.0W | 10 pin | Diffuser | 1m/3m/5m | |
| 21 | SBS-LSLHP1600 | Recheck | 24V/550.0W | 10 pin | Diffuser | 1m/3m/5m | |
| 22 | SBS-LSLHP1700 | Recheck | 24V/583.0W | 10 pin | Diffuser | 1m/3m/5m | |
| 23 | SBS-LSLHP1800 | Recheck | 24V/616.0W | 10 pin | Diffuser | 1m/3m/5m | |
| 24 | SBS-LSLHP1900 | Recheck | 24V/649.0W | 10 pin | Diffuser | 1m/3m/5m | |
| 25 | SBS-LSLHP2000 | Recheck | 24V/682.0W | 10 pin | Diffuser | 1m/3m/5m |

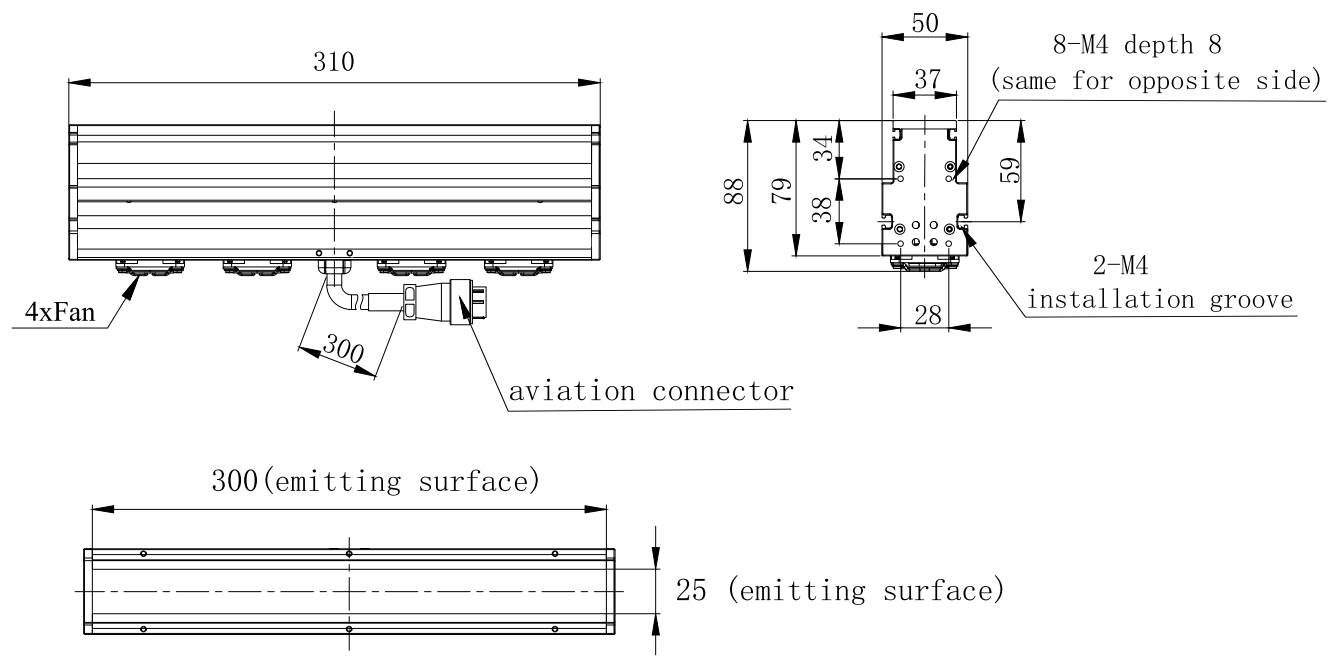

♦ Dimensions
Above drawing is for 3 pin connector |
Above drawing is for 5 pin connector |
