SBS-BL,BLD,BLU series Catalogue
♦ Light Structure

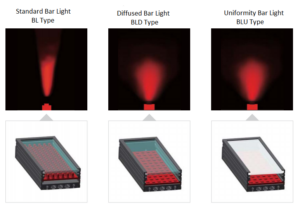

| Bar light is the one type of LED machine vision lighting suitable for big field of view application as it is length can be from millimeter to meter, and the color is also easy to choose and adjust. Multi bar lights can be combined for different application. it is one of the most used LED machine vision lighting used in machine vision application. |
♦ Spectrum Distribution
♦ Machine Vision Applications
• Letter quality checking of semiconductor product like IC
• PCB solder joint and electronic parts inspection
• Printing lables inspection and package box defects insepction
• Dimension gauging
• Letter quality inspection of electronic parts
♦ Bar Light Types
♦ Item No. Description
♦ Models
| Item No. | Power Comsuption (R) | Power Comsuption (W,B,G) | Option | Extension Cables | Recommended Controller |
| SBS-BL6020 | 24V/1.2W | 24V/1.8W | Diffuser | 1m/3m/5m | All the items |
| SBS-BL9020 | 24V/1.8W | 24V/2.8W | Diffuser | 1m/3m/5m | Compatible for |
| SBS-BL11020 | 24V/2.4W | 24V/3.6W | Diffuser | 1m/3m/5m | SBS-AC24 |
| SBS-BL14020 | 24V/3.2W | 24V/4.6W | Diffuser | 1m/3m/5m | (Analog controller) |
| SBS-BL16020 | 24V/3.6W | 24V/5.4W | Diffuser | 1m/3m/5m | SBS-DC24 |
| SBS-BL19020 | 24V/4.4W | 24V/6.4W | Diffuser | 1m/3m/5m | (Digital controller) |
| SBS-BL21020 | 24V/4.8W | 24V/7.2W | Diffuser | 1m/3m/5m | SBS-ODC24 |
| SBS-BL26020 | 24V/6W | 24V/9W | Diffuser | 1m/3m/5m | (Strobe controller) |
| SBS-BL31020 | 24V/7.2W | 24V/10.8W | Diffuser | 1m/3m/5m | |
| SBS-BL6040 | 24V/2.4W | 24V/3.6W | Diffuser | 1m/3m/5m | |
| SBS-BL9040 | 24V/4W | 24V/5.6W | Diffuser | 1m/3m/5m | |
| SBS-BL11040 | 24V/4.8W | 24V/7.2W | Diffuser | 1m/3m/5m | |
| SBS-BL16040 | 24V/7.2W | 24V/10.8W | Diffuser | 1m/3m/5m | |
| SBS-BL21040 | 24V/9.6W | 24V/14.4W | Diffuser | 1m/3m/5m | |
| SBS-BL26040 | 24V/12W | 24V/18W | Diffuser | 1m/3m/5m | |
| SBS-BL31040 | 24V/14.4W | 24V/21.6W | Diffuser | 1m/3m/5m | |
| SBS-BL36040 | 24V/16.8W | 24V/25.2W | Diffuser | 1m/3m/5m | |
| SBS-BL41040 | 24V/19.2W | 24V/28.8W | Diffuser | 1m/3m/5m | |
| SBS-BL46040 | 24V/21.6W | 24V/31.6W | Diffuser | 1m/3m/5m | |
| SBS-BL51040 | 24V/24W | 24V/36W | Diffuser | 1m/3m/5m | |
| SBS-BL56040 | 24V/26.4W | 24V/40.4W | Diffuser | 1m/3m/5m | |
| SBS-BL61040 | 24V/31.2W | 24V/43.2W | Diffuser | 1m/3m/5m | |
| SBS-BL71040 | 24V/38.4W | 24V/50.4W | Diffuser | 1m/3m/5m | |
| SBS-BL81040 | 24V/43.2W | 24V/57.6W | Diffuser | 1m/3m/5m | |
| SBS-BL91040 | 24V/48W | 24V/64.8W | Diffuser | 1m/3m/5m | |
| SBS-BLD6020 | 24V/0.8W | 24V/1.2W | Diffuser | 1m/3m/5m | |
| SBS-BLD9020 | 24V/1.2W | 24V/2W | Diffuser | 1m/3m/5m | |
| SBS-BLD11020 | 24V/1.6W | 24V/2.4W | Diffuser | 1m/3m/5m | |
| SBS-BLD14020 | 24V/2W | 24V/3.2W | Diffuser | 1m/3m/5m | |
| SBS-BLD16020 | 24V/2.4W | 24V/3.6W | Diffuser | 1m/3m/5m | |
| SBS-BLD19020 | 24V/2.8W | 24V/4.4W | Diffuser | 1m/3m/5m | |
| SBS-BLD21020 | 24V/3.2W | 24V/4.8W | Diffuser | 1m/3m/5m | |
| SBS-BLD26020 | 24V/8W | 24V/12W | Diffuser | 1m/3m/5m | |
| SBS-BLD31020 | 24V/9.6W | 24V/14.4W | Diffuser | 1m/3m/5m | |
| SBS-BLD6040 | 24V/1.6W | 24V/2.4W | Diffuser | 1m/3m/5m | |
| SBS-BLD9040 | 24V/2.4W | 24V/4W | Diffuser | 1m/3m/5m | |
| SBS-BLD11040 | 24V/3.2W | 24V/4.8W | Diffuser | 1m/3m/5m | |
| SBS-BLD14040 | 24V/4W | 24V/5.6W | Diffuser | 1m/3m/5m | |
| SBS-BLD16040 | 24V/4.8W | 24V/7.2W | Diffuser | 1m/3m/5m | |
| SBS-BLD19040 | 24V/5.6W | 24V/8.8W | Diffuser | 1m/3m/5m | |
| SBS-BLD21040 | 24V/6.4W | 24V/9.6W | Diffuser | 1m/3m/5m | |
| SBS-BLD26040 | 24V/8W | 24V/12W | Diffuser | 1m/3m/5m | |
| SBS-BLD31040 | 24V/9.6W | 24V/14.4W | Diffuser | 1m/3m/5m | |
| SBS-BLD36040 | 24V/12W | 24V/16.8W | Diffuser | 1m/3m/5m | |
| SBS-BLD41040 | 24V/12.8W | 24V/19.2W | Diffuser | 1m/3m/5m | |
| SBS-BLD46040 | 24V/14W | 24V/21.6W | Diffuser | 1m/3m/5m | |
| SBS-BLD51040 | 24V/16W | 24V/24W | Diffuser | 1m/3m/5m | |
| SBS-BLD56040 | 24V/18W | 24V/26.5W | Diffuser | 1m/3m/5m | |
| SBS-BLD61040 | 24V/19.2 | 24V/28.8 | Diffuser | 1m/3m/5m | |
| SBS-BLD71040 | 24V/20.4 | 24V/31.1W | Diffuser | 1m/3m/5m | |
| SBS-BLD81040 | 24V/25.6W | 24V/38.4W | Diffuser | 1m/3m/5m | |
| SBS-BLD91040 | 24V/30W | 24V/45.7W | Diffuser | 1m/3m/5m | |
| SBS-BLD101040 | 24V/32W | 24V/48W | Diffuser | 1m/3m/5m | |
| SBS-BLD121040 | 24V/38.4W | 24V/57.6W | Diffuser | 1m/3m/5m | |
| SBS-BLD141040 | 24V/44.8W | 24V/67.2W | Diffuser | 1m/3m/5m | |
| SBS-BLU5020 | 24V/0.8W | 24V/1.2W | Diffuser | 1m/3m/5m | |
| SBS-BLU9020 | 24V/1.6W | 24V/2.4W | Diffuser | 1m/3m/5m | |
| SBS-BLU13020 | 24V/2.4W | 24V/3.6W | Diffuser | 1m/3m/5m | |
| SBS-BLU17020 | 24V/3.2W | 24V/4.8W | Diffuser | 1m/3m/5m | |
| SBS-BLU21020 | 24V/4W | 24V/6W | Diffuser | 1m/3m/5m | |
| SBS-BLU25020 | 24V/4.8W | 24V/7.2W | Diffuser | 1m/3m/5m | |
| SBS-BLU29020 | 24V/5.6W | 24V/8.4W | Diffuser | 1m/3m/5m | |
| SBS-BLU33020 | 24V/6.4W | 24V/9.6W | Diffuser | 1m/3m/5m | |
| SBS-BLU37020 | 24V/7.2W | 24V/10.8W | Diffuser | 1m/3m/5m | |
| SBS-BLU5040 | 24V/1.6W | 24V/2.4W | Diffuser | 1m/3m/5m | |
| SBS-BLU9040 | 24V/3.2W | 24V/4.8W | Diffuser | 1m/3m/5m | |
| SBS-BLU13040 | 24V/4.8W | 24V/7.2W | Diffuser | 1m/3m/5m | |
| SBS-BLU17040 | 24V/6.4W | 24V/9.6W | Diffuser | 1m/3m/5m | |
| SBS-BLU21040 | 24V/8W | 24V/12W | Diffuser | 1m/3m/5m | |
| SBS-BLU25040 | 24V/9.6W | 24V/14.4W | Diffuser | 1m/3m/5m | |
| SBS-BLU29040 | 24V/11.2W | 24V/16.8W | Diffuser | 1m/3m/5m | |
| SBS-BLU33040 | 24V/12.8W | 24V/19.2W | Diffuser | 1m/3m/5m | |
| SBS-BLU37040 | 24V/14.4W | 24V/21.6W | Diffuser | 1m/3m/5m | |
| SBS-BLU41040 | 24V/16W | 24V/24W | Diffuser | 1m/3m/5m | |
| SBS-BLU45040 | 24V/17.6W | 24V/26.4W | Diffuser | 1m/3m/5m | |
| SBS-BLU49040 | 24V/19.2W | 24V/28.8W | Diffuser | 1m/3m/5m | |
| SBS-BLU53040 | 24V/20.8W | 24V/31.2W | Diffuser | 1m/3m/5m | |
| SBS-BLU57040 | 24V/24W | 24V/36W | Diffuser | 1m/3m/5m | |
| SBS-BLU61040 | 24V/25.6W | 24V/38.4W | Diffuser | 1m/3m/5m | |
| SBS-BLU65040 | 24V/27.2W | 24V/40.8W | Diffuser | 1m/3m/5m | |
| SBS-BLU69040 | 24V/28.8W | 24V/43.2W | Diffuser | 1m/3m/5m | |
| SBS-BLU73040 | 24V/32W | 24V/48W | Diffuser | 1m/3m/5m | |
| SBS-BLU77040 | 24V/33.6W | 24V/50.4W | Diffuser | 1m/3m/5m | |
| SBS-BLU81040 | 24V/35.2W | 24V/52.8W | Diffuser | 1m/3m/5m | |
| SBS-BLU85040 | 24V/36.8W | 24V/55.2W | Diffuser | 1m/3m/5m |
♦ Dimensions

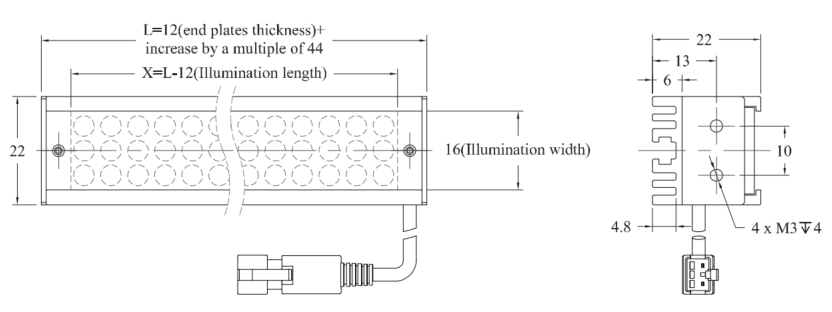

Drawing for the width of 20mm including BL type, BLD type and BLU type
Drawing for the width of 40mm including BL type, BLD type and BLU type
