SBS-FDL series Catalgoue

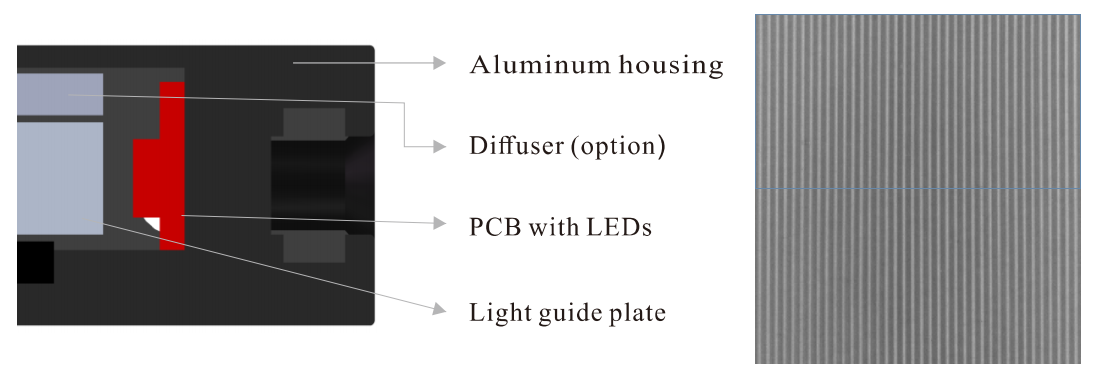

♦ Light Structure

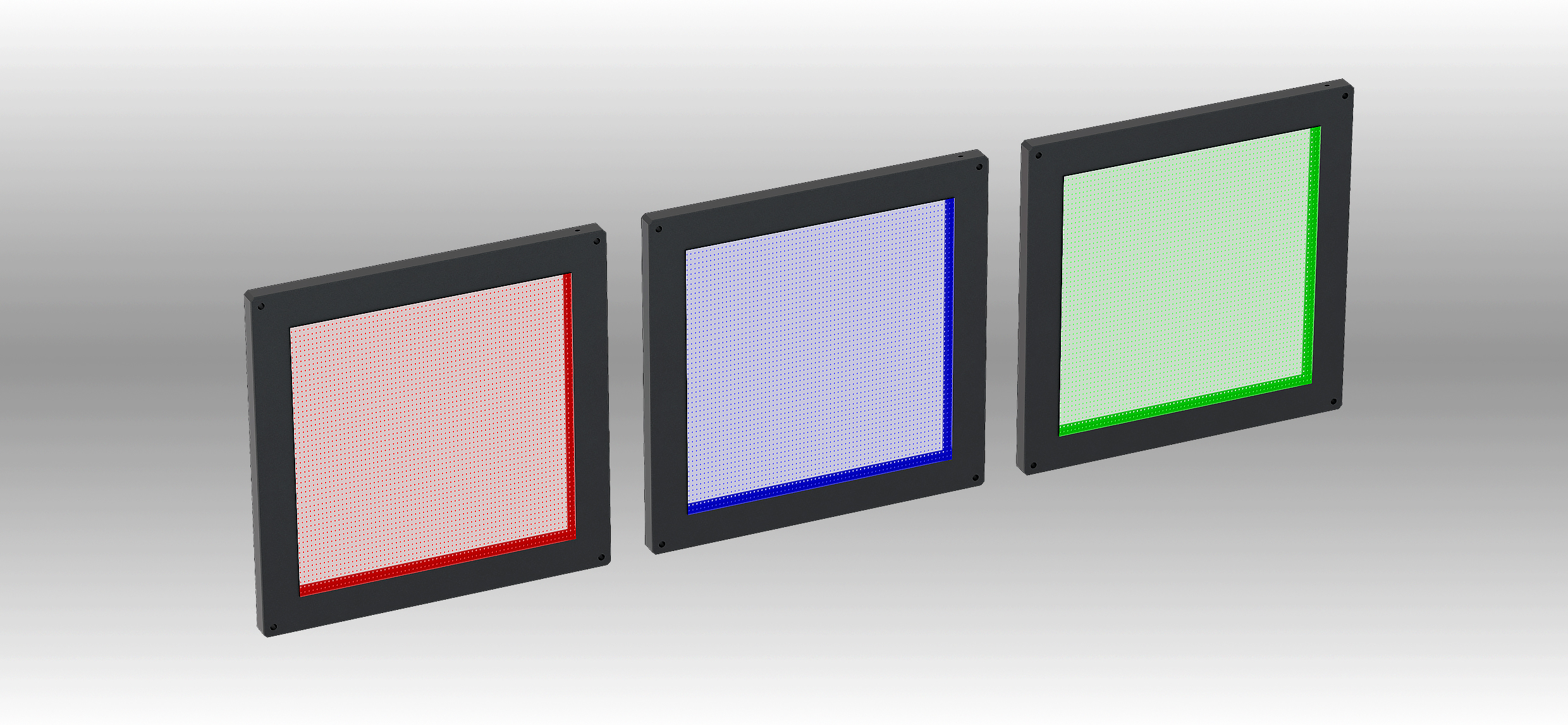

| Flat dome light is one type of LED machine vision lightings designed by special optical material to make the light illuminated evenly. It is reached the coaxial light and low angel ring light image result, it is the best choice for the surface inspection. At the same time, its dimension is very tight design, so it saves a lot of space compared with coaxial light. Dots type and lines type are available. |
♦ Spectrum Distribution
♦ Machine Vision Applications
• Letter quality checking of semiconductor product like IC
• PCB solder joint and electronic parts inspection
• Printing lables inspection and package box defects insepction
• Dimension gauging
• Letter quality inspection of electronic parts

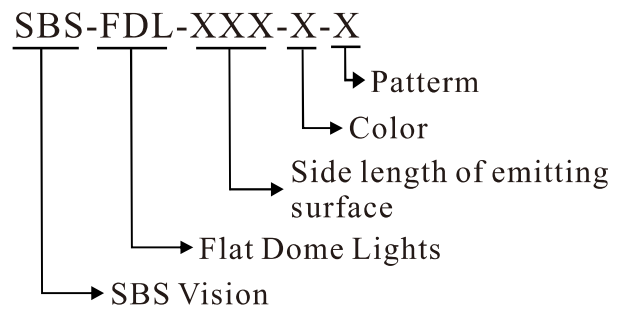

♦ Item No. Description
♦ Models
| Item No. | Power Comsuption (R) | Power Comsuption (W,B,G) | Option | Extension Cables | Recommended Controller |
| SBS-FDL50 | 24V/0.9W | 24V/1.5W | / | 1m/3m/5m | SBS-AC24 type |
| SBS-FDL100 | 24V/1.8W | 24V/2.8W | / | 1m/3m/5m | SBS-DC24 type |
| SBS-FDL150 | 24V/2.7W | 24V/4.3W | / | 1m/3m/5m | SBS-ODC24 type |
♦ Dimension

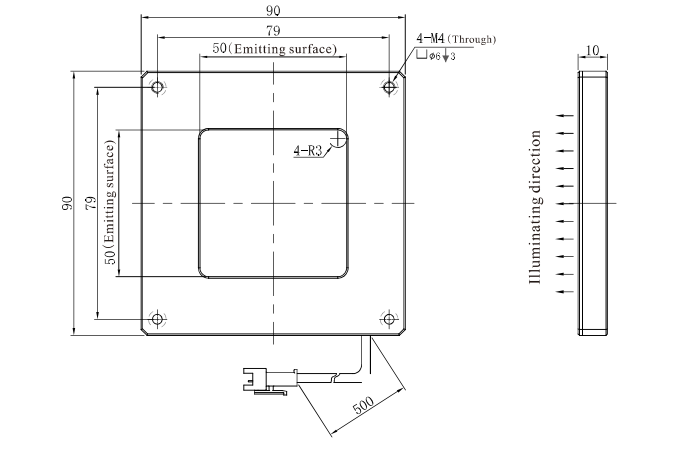

SBS-FDL50 |

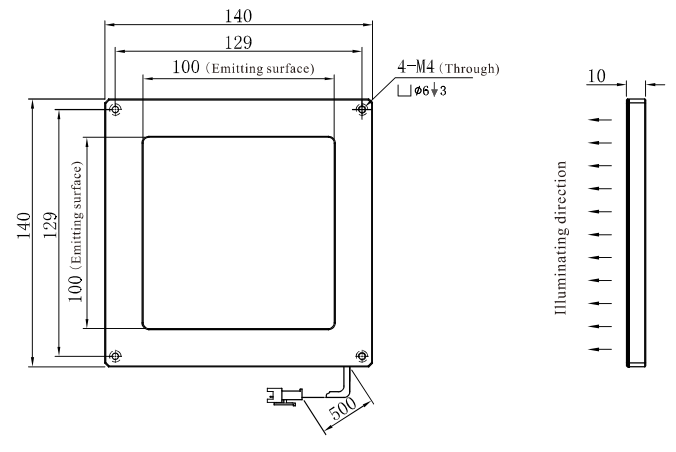

SBS-FDL100 |

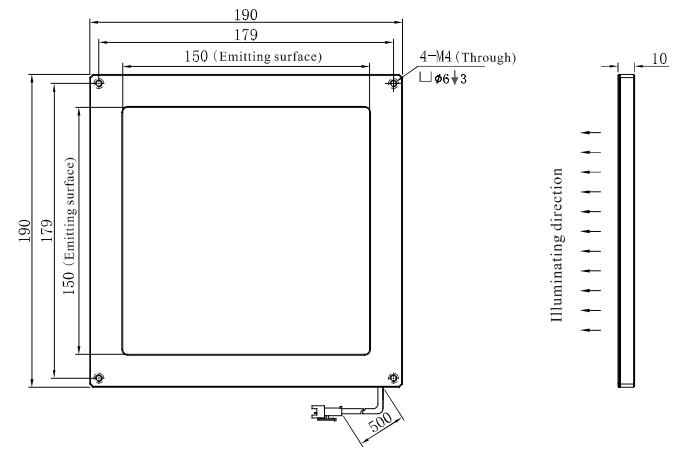

SBS-FDL150 |
