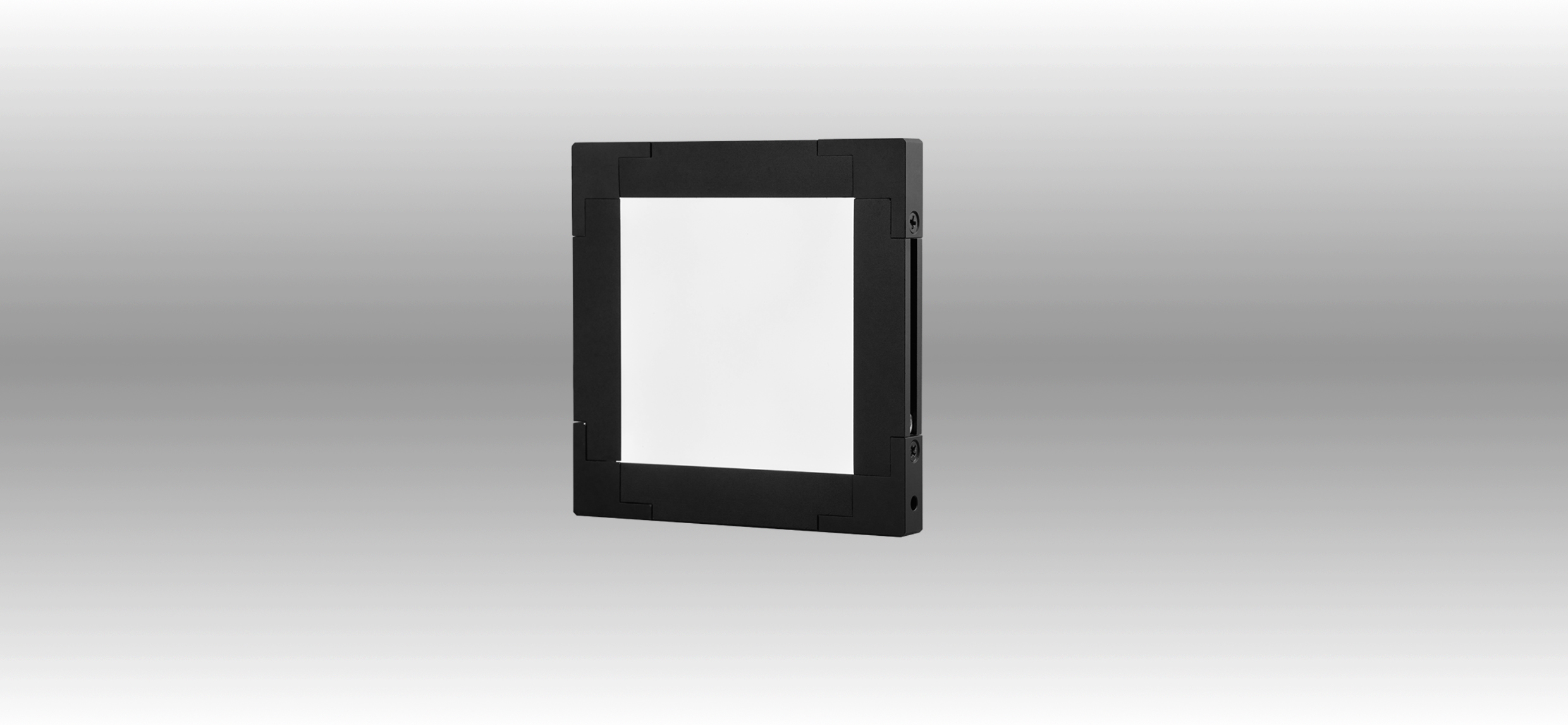

|SBS-BALT series Catalogue|

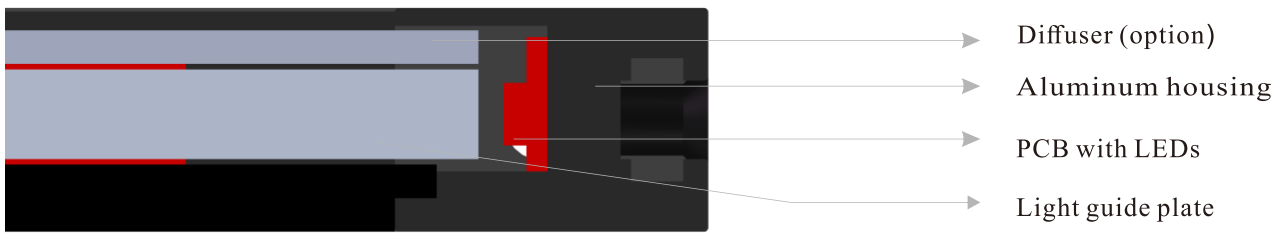

|♦ Light Structure|
|In machine vision application, thin back light is kind of LED machine vision lighting which the LED arrayed in the four sides, it is used the special light guide plate to increase the intensity of the light, and get even light. The thickness is the whole light is very thin, so that it is easy to install into the machine.|
|♦ Spectrum Distribution|
|♦ Machine Vision Applications|
• Liquid level detection
• Metal part foreign point and defects inspection
• Automative dimension measurement
• PCB circuit board inspection

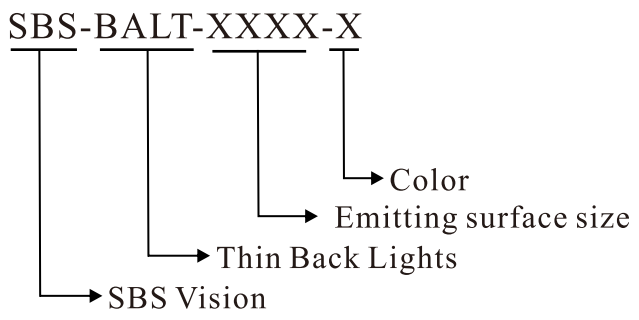

|♦ Item No. Description|

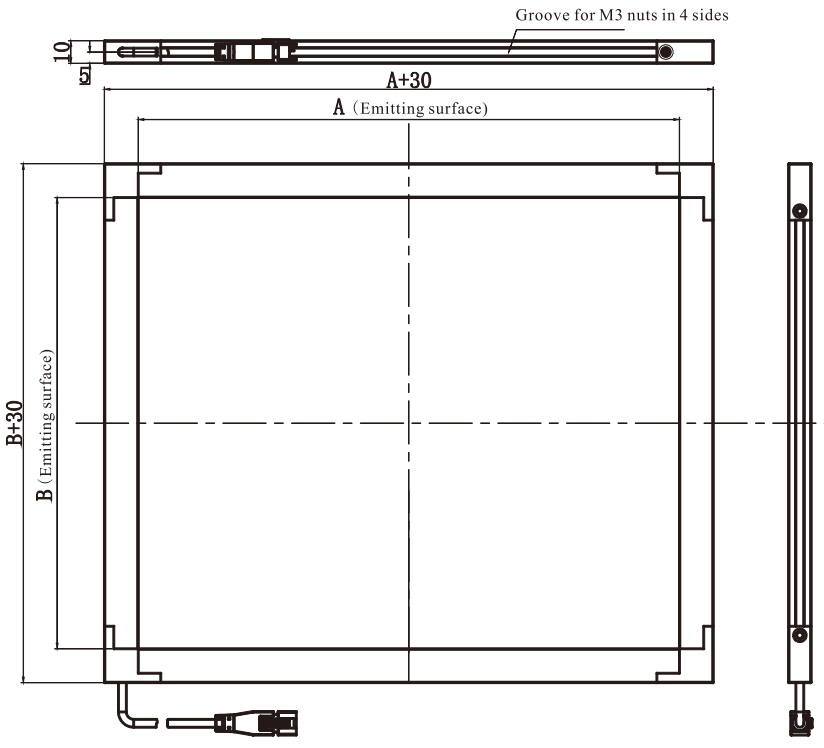

Above drawing is for the illumination size smaller than 300mm.

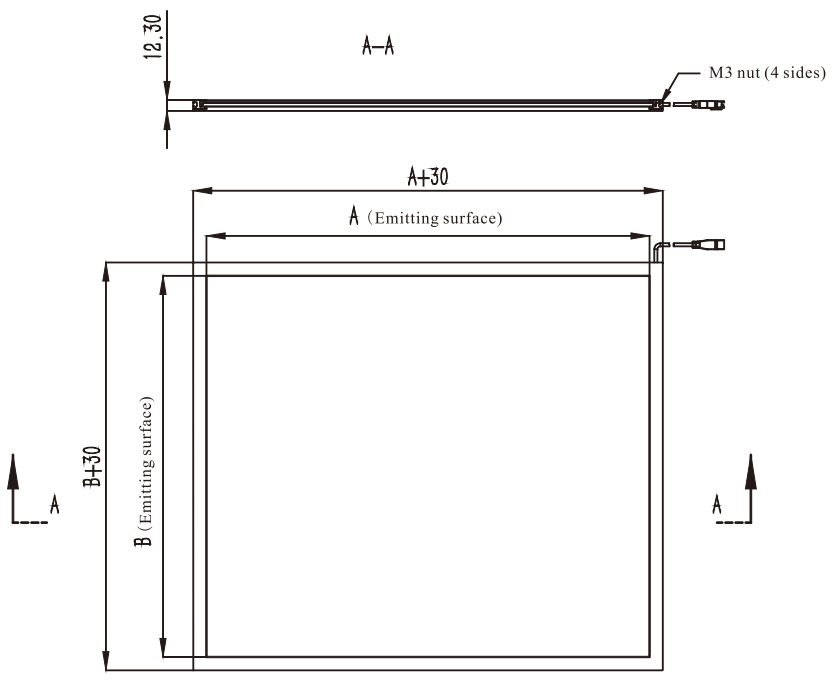

Above drawing is for the illumination size bigger than 300mm.
