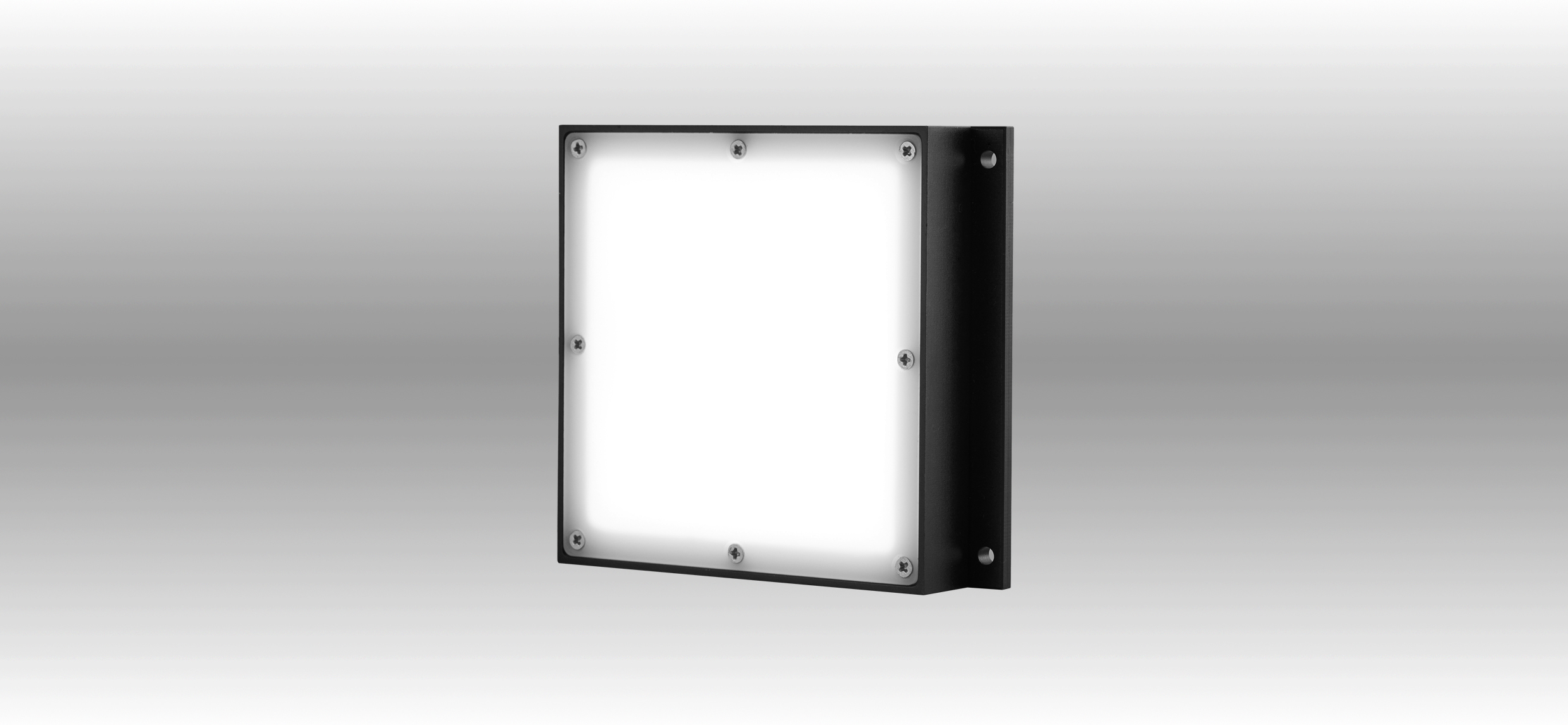

Parallel Back Lights

Parallel Back Lights is a kind of LED Machine Vision lighting, it can get more parallel light compared with Back Lights. The LEDs are arrayed in the bottom, and covered by a special uniform lighting guiding Diffuser. It is one of best choice for measuring in Machine Vision applications.

Parallel Back Lights Catalogue Download

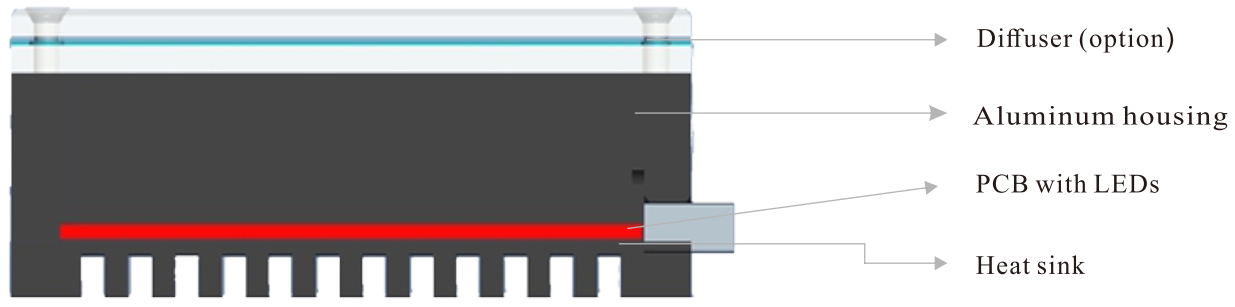

♦ Light Structure

♦ Spectrum Distribution

♦ Applications the light be used for

• Profile and machining dimension measuring.

• Scratch, dirty, internal foreign, damage inspection of transparent objects.

• Damage and foreign substance inspection of glass.

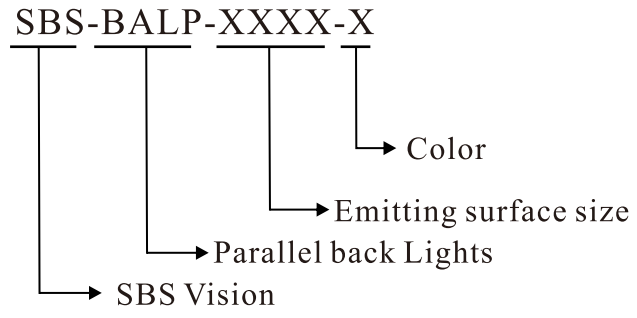

♦ Model Description

♦ Parameter

Model	Power Comsuption (R)	Power Comsuption (W,B,G)	Option	Extension Cables	Recommended Controller
SBS-BALP2727	24V/0.8W	24V/1.2W	/	1m/3m/5m	All the items compatible for
SBS-BALP4828	24V/1.6W	24V/2.4W	/	1m/3m/5m	SBS-AC24(Analog controller)
SBS-BALP5050	24V/2.4W	24V/3.6W	/	1m/3m/5m	SBS-DC24(Digital controller)
SBS-BALP7070	24V/4W	24V/6W	/	1m/3m/5m	SBS-ODC24(Overdriven controller)
SBS-BALP100100	24V/5.8W	24V/13W	/	1m/3m/5m
SBS-BALP150100	24V/8W	24V/13.2W	/	1m/3m/5m
SBS-BALP150150	24V/12W	24V/19W	/	1m/3m/5m
SBS-BALP200200	24V/20.2W	24V/29W	/	1m/3m/5m

♦ Dimensions(mm)

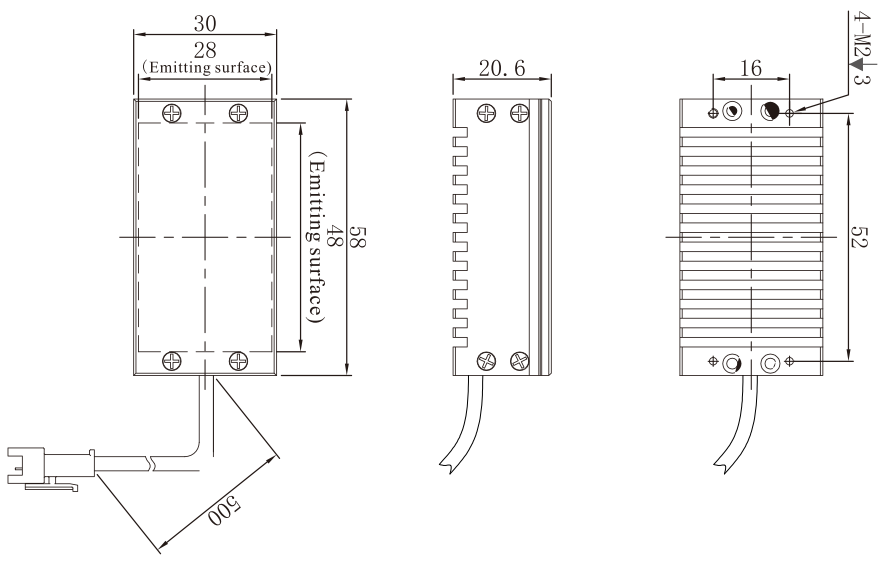

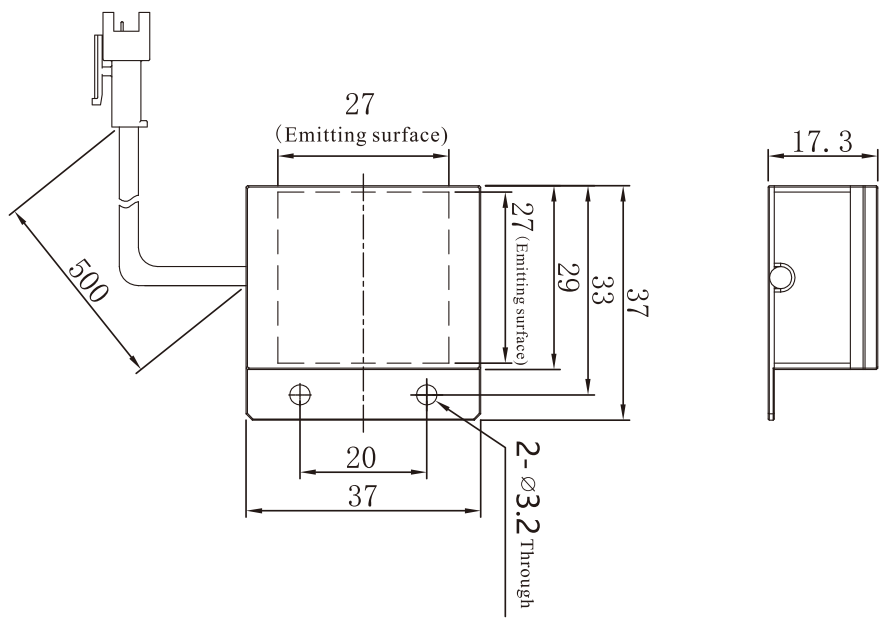

SBS-BALP2727	SBS-BALP4828

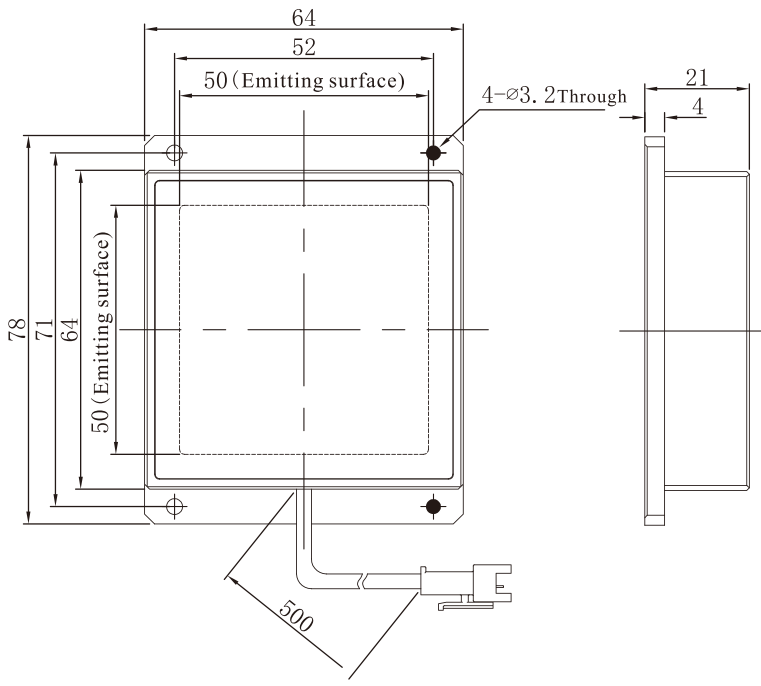

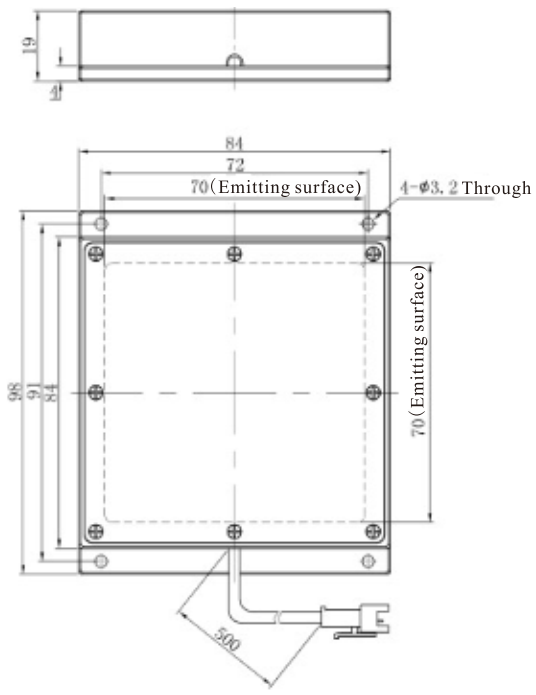

SBS-BALP5050	SBS-BALP7070

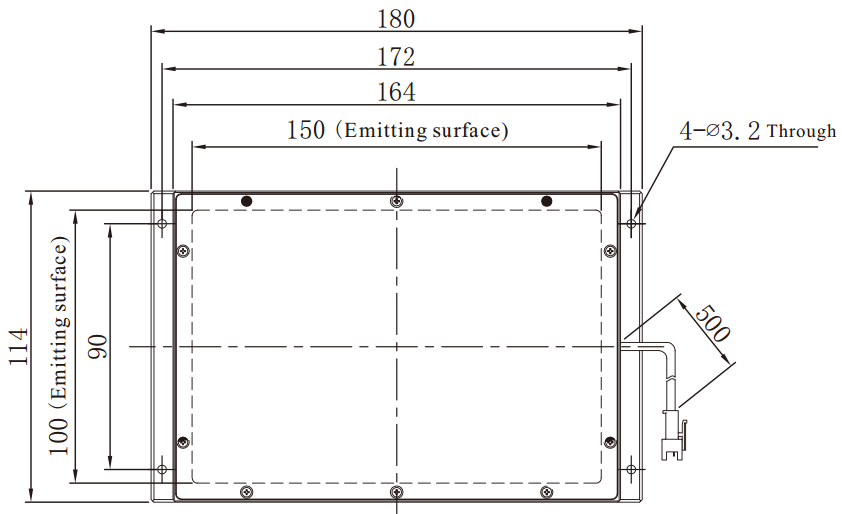

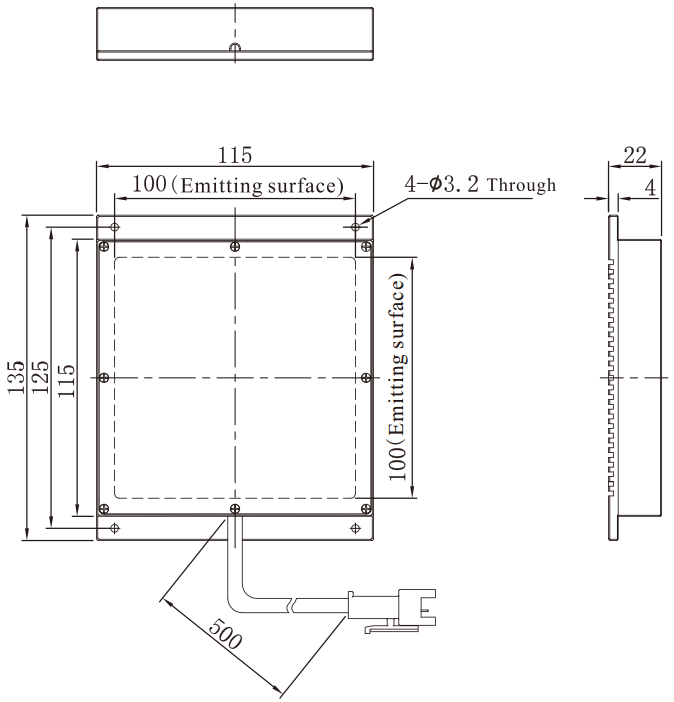

SBS-BALP100100	SBS-BALP150100

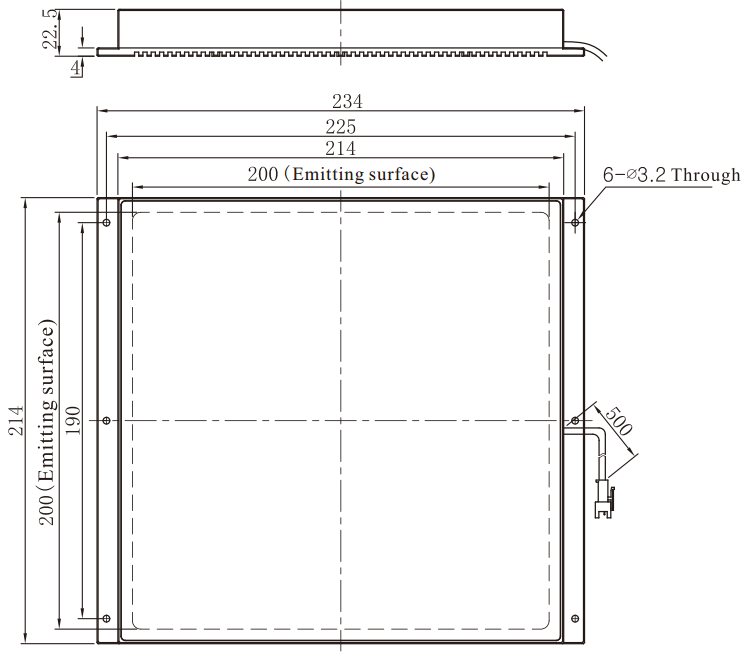

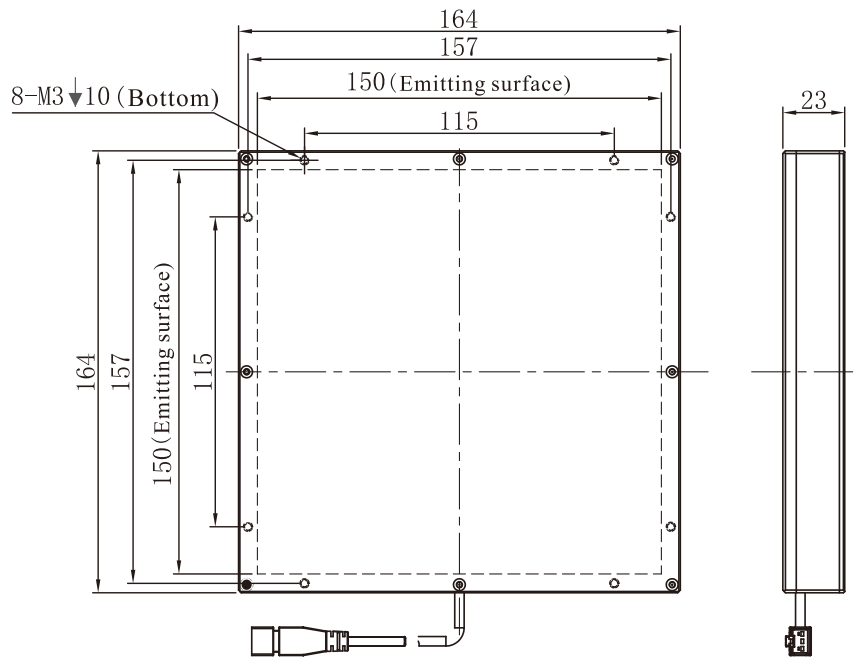

SBS-BALP150150	SBS-BALP200200
