Digital Controller

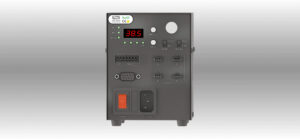

This product is the digital controller with 4 channels, each channel can be controlled individually, it has two kinds of control way, one is controlled by hand, another is controlled by RS232 or Ethernet. The intensity can be adjusted with 1000 levels. There is a digital display in the front, when you adjust the intensity by the buttons, the number will be showed on the display, and there is also a locked key so that the set intensity will not be changed. It also can use RS232 or Ethernet to communicate with the controller to adjust the intensity. The trigger function is from outsourcing signal to turn on or turn off the lights.

Add to quote
Category:
Digital controller is one kind of controller which can control the lights remote when it is integrated with software.
SBS-DC series catalouge
♦ Product Features
• It can be switched to constant on or off.

• Providing RS232 or Ethernet communication

• Providing 0-999 intensity level

• With over current and short protection

• Adopted opto isolatar for outsourcing trigger to provide stable and accuracy signal
♦ Item Description
♦ Product Item Information
Item No SBS-DC24-36-2  SBS-DC24-64-4  SBS-DC24-124-4
Output way Constant voltage
Control way PWM control
Input voltage AC100-240V 50/60HZ
Channels 2 4 4
Max current output 1.5A (single CH is 1A)  2.5A (single CH is 1.5A)  5A (single CH is 2.5A)
Total power output 36W 64W 124W
Output connector SM 03V-BC (pin 1 is +, pin 2 NG, pin 3 is -)
Trigger voltage input 12V-24V (current is 5.6mA)
Trigger delay Less than 50us
Usage environment Temperature: 0–40℃          humidity: 20-85% RH (not frozen)
Storage environment Temperature: -20–60℃      humidity: 20-85% RH (not frozen)
Cooling way Nature cooling                                                                                     Fan system cooling


♦ Trigger connectors

 SBS-DC24-36-2 SBS-DC24-64-4       SBS-DC24-124-4

SBS-DC24-36-2
Trigger Wiring

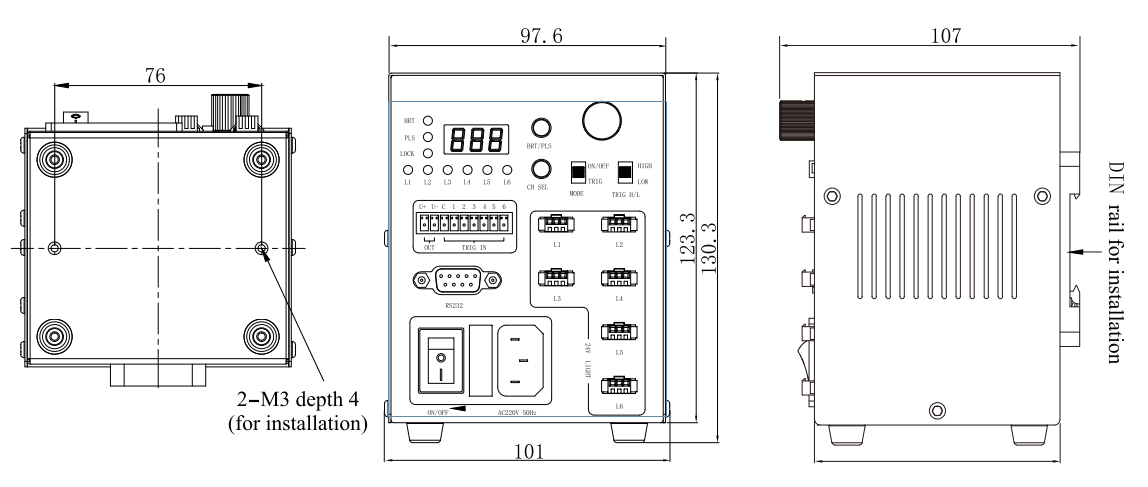

SBS-DC24-64-4 and SBS-DC24-124-4
①Power indicator (the LED is green when it is input power)

②Lock indicator (the LED is blue, when the set is locked)

③Wrong indicator (the LED is red when something is wrong)

④M key select the channels (it is used to select the channels or continuous on and continuous off)

⑤Intensity level set key (each press to move different intensity level)

⑥Output connector (from channel 1 to channel 4, pin 1 is plus, pin 3 is minus)

⑦Serial port (connect with PC, the related pin is pin 2, pin 3 and pin 5)

⑧AC power input (input 100-240VAC)

⑨Chanel and intensity display (the first number shows the channel number and on or off status, the second to fourth show the 000-999 levels intensity)

⑩Intensity adjust key (+ means increase the intensity, – means decrease the intensity)

⑪Outsourcing trigger connector (COM is the trigger connector, it can be input plus or minus, TR1 to TR4 is related with CH1 to CH4)

⑫Power button       ⑬FG connector is for ground
