2/3“ 5MP Focal Lens

SBS Vision has multi choices of different Focal Lens, it’s low price with high level quality. The resolution is from 2MP to 29MP, the Focal Length is from 4mm to 100mm. It has high proformance for Machine Vision Applications. Customize design is also available for us. Normally, we have stock for the standard Lens and it can make the shipment within 1~3 working days, if out of stock, most of the samples can be delivered within 1 month.

Category: Focal Lens

Description

5MP Series FA Lens Catalogue Download

♦ Product Features

• Best image comparation.

• The pixel resolution is 3.45um.

• Low distortion,high uniformity.

• The sensor size can match with 2/3″ and 1/1.18″.

♦ Parameter

❋Please click the item no. for datasheet download

No.

Item No.

Sensor size

Focal length (mm)

Pixel resolution (um)

Iris (F#)

Mount

Distortion (%)

Relative illumination (%)

Filter screw size

WD (mm)

Flange back (mm)

Back Focus (mm)

Chief ray angle

Field of view

2/3″

1/2″

D

H

V

D

H

V

1

2/3″

8

3.45

1.6-16

C

<0.3

>70

M35.5*P0.5

100-1500

17.526 in air

9.00 in air

<8°

68.0°

57.1°

44.3°

52.6°

43.0°

32.8°

2

2/3″

12

3.45

1.6-16

C

<0.15

>70

M35.5*P0.5

100-1500

17.526 in air

14.04 in air

<8°

48.1°

39.4°

30.1°

36.0°

29.2°

22.1°

3

2/3″

16

3.45

1.6-16

C

<0.1

>70

M35.5*P0.5

100–1500

17.526 in air

14.90 in air

<6°

37.8°

30.7°

23.2°

28.0°

22.,5°

17.0°

4

2/3″

25

3.45

1.6-16

C

<0.1

>70

M35.5*P0.5

100-1500

17.526 in air

10.45 in air

<7°

23.3°

18.7°

14.1°

17.1°

13.7°

10.3°

5

2/3″

35

3.45

1.6-16

C

<0.15

>70

M35.5*P0.5

150-1500

17.526 in air

12.52 in air

<5°

17.3°

13.7°

10.2°

12.5°

10.0°

7.3°

6

2/3″

50

3.45

1.6-16

C

<0.05

>70

M40.5*P0.5

300-∞

17.526 in air

10.88 in air

<3°

13.2°

10.6°

8.0°

9.6°

7.7°

5.8°

♦ SBS-0816-5MP

MTF	RI

Spot Diagram	Distortion

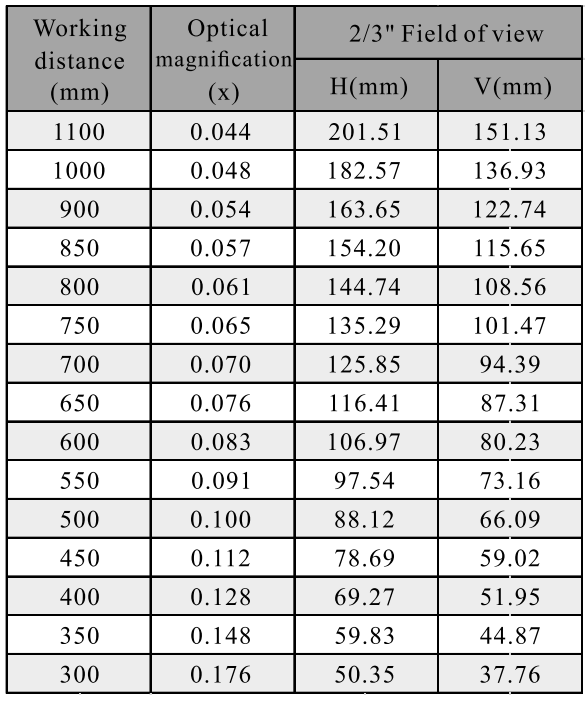

WD VS FOV	Dimensions(mm)

♦ SBS-1216-5MP

MTF	RI

Spot Diagram	Distortion

WD VS FOV	Dimensions(mm)

♦ SBS-1616-5MP

MTF	RI

Spot Diagram	Distortion

WD VS FOV	Dimensions(mm)

♦ SBS-2516-5MP

MTF	RI

Spot Diagram	Distortion

WD VS FOV	Dimensions(mm)

♦ SBS-3516-5MP

MTF	RI

Spot Diagram	Distortion

WD VS FOV	Dimensions(mm)

♦ SBS-5016-5MP

MTF	RI

Spot Diagram	Distortion

WD VS FOV	Dimensions(mm)
