4K Line Scan Lens

We have excellent optical performance and uniform imaging from center to edge of 4K, 8K and 16K Line Scan lens with different focus for compatible of our line scan camera using.

Add to quote
Category:

4K Line Scan Lens Catalogue Download

♦ Product Features
• 4K Line Scan Lens is a good choice for package inspection.

• Choice is flexiable from different magnification.

• Excellent optical performance, the image result is very uniform from center to side.

• It is suitable for 2K/4K Line Scan Camera.

• Transmission from 400nm to 700nm.
♦ Parameter
No. Item No Image size (mm) Iris (F#) Resolution Magnification range WD (mm) Focal Length (mm) Distortion (%) Relative illumination (%) Conjugate distance (mm) Mount
1 SBS-XS254K-003X φ30 4-22 4k 7μm 0.015x-0.05x 520-1740 25 <0.5 >60 607.3-1826.4 M42*P1.0
2 SBS-XS254K-008X φ30 4-22 4k 7μm 0.05x-0.125x 200-520 25 <0.5 >60 284.9-602.9 M42*P1.0
3 SBS-XS254K-015X φ30 4-22 4k 7μm 0.125x-0.175x 130-187 25 <0.5 >60 223.4-279.2 M42*P1.0
4 SBS-XS254K-024X φ30 4-22 4k 7μm 0.175x-0.3x 74-135 25 <0.5 >60 171.7-229.5 M42*P1.0
5 SBS-XS354K-025X φ30 4-16 4k 7μm 0.01x-0.5x 83-3513 35 <0.05 >75 152-INF. M42*P1.0
6 SBS-XS404K-018X φ43 3.2-16 4k 7μm 0.04x-0.33x 132-1044 40 <0.5 >25 220.53-1120.59 M42/M48/M58/ M72/M50/F


♦ SBS-XS254K-003X
Parameter
MTF based on the image height of visible spectrum

Distortion Relative Illumination
Dimensions (mm)
♦ SBS-XS254K-008X
Parameter

MTF based on the image height of visible spectrum


Distortion Relative Illumination

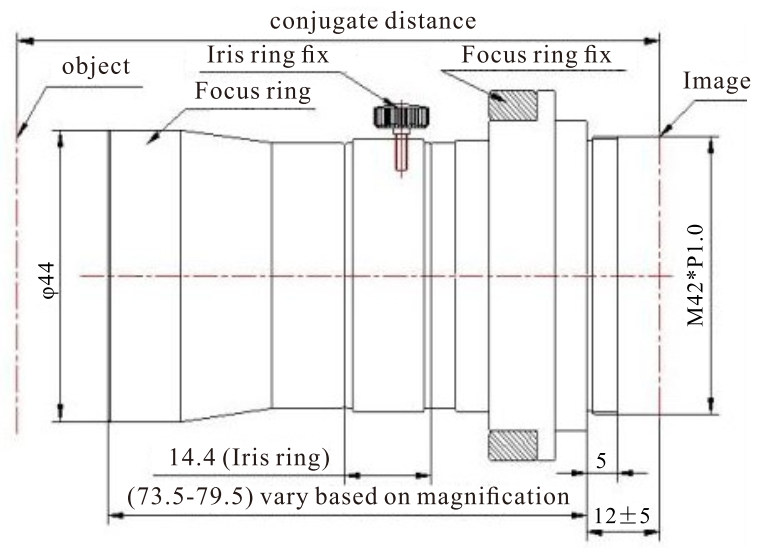

Dimensions (mm)
♦ SBS-XS254K-015X
Parameter

MTF based on the image height of visible spectrum


Distortion Relative Illumination
Dimensions (mm)
♦ SBS-XS254K-024X
Parameter

MTF based on the image height of visible spectrum


Distortion Relative Illumination
Dimensions (mm)
♦ SBS-XS354K-025X
Parameter
MTF based on the image height of visible spectrum

Distortion Relative Illumination
Dimensions (mm)
♦ SBS-XS404K-018X
Parameter

MTF based on the image height of visible spectrum


Distortion Relative Illumination
Dimensions (mm)

Extension ring
