8K Line Scan Lens

8K Line Scan Lens

We have excellent optical performance and uniform imaging from center to edge of 4K, 8K and 16K Line Scan lens with different focus for compatible of our line scan camera using.

Category: Line Scan Lens

Description

8K Line Scan Lens Catalogue Download

♦ Product Features

• 8K Line Scan Lens is a good choice for the lithium battery inspection.

• Short working distance, high resolution.

• Excellent optical performance, the image result is very uniform from center to side.

• It is suitable for 2K/4K/8K Line Scan Camera.

♦ Parameter

No.	Item No	Image size (mm)	Iris (F#)	Resolution	Magnification range	WD (mm)	Focal Length (mm)	Distortion (%)	Relative illumination (%)	Conjugate distance (mm)	Mount
1	SBS-XS508K-005X	φ60	4-22	8k 7μm	0.025x-0.07x	735-2000	50	<0.2	>60	839-2102	M72*P0.75
2	SBS-XS508K-010X	φ60	4-22	8k 7μm	0.07x-0.13x	405-735	50	<0.2	>60	512-839	M72*P0.75
3	SBS-XS508K-020X	φ60	4-22	8k 7μm	0.15x-0.25x	220-350	50	<0.2	>60	333-458	M72*P0.75
4	SBS-XS608K-018X	φ60	4-16	8k 7μm	0.04x-0.33x	214-1536	60	<0.5	>70	318-1622	M42/M48/M58/ M72/F
5	SBS-XS808K-028X	φ60	4-22	8k 7μm	0.2x-0.375x	276-460	80	<0.2	>70	438-608	M72*P0.75
6	SBS-XS808K-050X	φ60	4-22	8k 7μm	0.375x-0.625x	188-273	80	<0.1	>70	368-434	M72*P0.75
7	SBS-XS808K-075X	φ60	4-22	8k 7μm	0.625x-0.9x	147-185	80	<0.1	>70	348-365	M72*P0.75

♦ SBS-XS508K-005X

Parameter

MTF based on the image height of visible spectrum

Distortion	Relative Illumination

Dimensions (mm)

♦ SBS-XS508K-010X

Parameter

MTF based on the image height of visible spectrum

Distortion	Relative Illumination

Dimensions (mm)

♦ SBS-XS508K-020X

Parameter

MTF based on the image height of visible spectrum

Distortion	Relative Illumination

Dimensions (mm)

♦ SBS-XS608K-018X

Parameter

MTF based on the image height of visible spectrum

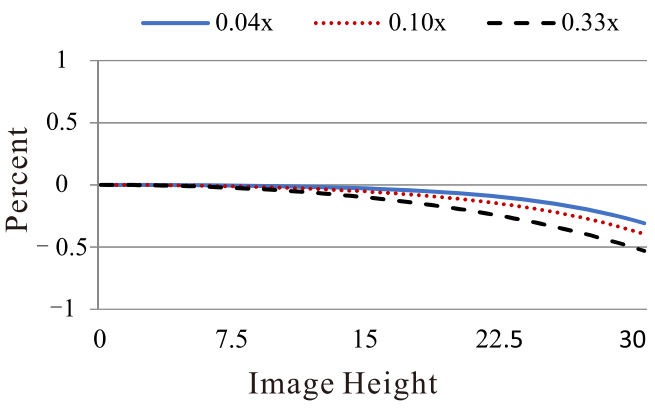

Distortion	Relative Illumination

Dimensions (mm)

♦ SBS-XS808K-028X

Parameter

MTF based on the image height of visible spectrum

Distortion	Relative Illumination

Dimensions (mm)

♦ SBS-XS808K-050X

Parameter

MTF based on the image height of visible spectrum

Distortion	Relative Illumination

Dimensions (mm)

♦ SBS-XS808K-075X

Parameter

MTF based on the image height of visible spectrum

Distortion	Relative Illumination

Dimensions (mm)
