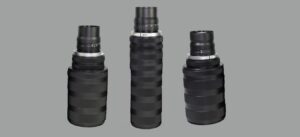

16K Line Scan Lens

We have excellent optical performance and uniform imaging from center to edge of 4K, 8K and 16K Line Scan lens with different focus for compatible of our line scan camera using.

Add to quote
Category:

16K Line Scan Lens Catalogue Download

♦ Product Features
• Low distortion, high relative illumination.

• Choice is flexiable from different magnification.

• Excellent optical performance, the image result is very uniform from center to side.

• It is suitable for 2K/4K/8K/16K Line Scan Camera.
♦ Parameter
No. Item No Image size (mm) Iris (F#) Resolution Magnification range WD (mm) Focal Length (mm) Distortion (%) Relative illumination (%) Conjugate distance (mm) Mount
1 SBS-XS4016K-012X φ60 4-16 16k 3.45μm 0.004x-0.227x 170-9987 40 <0.5 >60 322-10130 M58/M72
2 SBS-XS8016K-018X φ80 4-16 16k 5μm 0.04x-0.33x 303-2071 80 <0.1 >60 430-2176 M42/M48/M58/ M72/M90/F
3 SBS-XS14616K-026X φ82 4-16 16k 5μm 0.22x-0.30x 571-752 146 <0.005 >80 799-966 M95/M90/M72
4 SBS-XS14616K-033X φ82 4-16 16k 5μm 0.30x-0.37x 482-571 146 <0.005 >80 720-799 M95/M90/M72
5 SBS-XS14616K-050X φ82 4-16 16k 5μm 0.45x-0.55x 357-417 146 <0.005 >80 613-658 M95/M90/M72
6 BS-XS14616K-075X φ82 4-16 16k 5μm 0.70x-0.85x 267-304 146 <0.002 >80 566-581 M95/M90/M72
7 SBS-XS14616K-100X φ82 4-16 16k 5μm 0.92x-1.08x 180-198 146 <0.001 >80 423-443 M95/M90/M72
8 SBS-XS14616K-133X φ82 4-16 16k 5μm 1.2x-1.5x 192-216 146 <0.002 >90 567-586 M95/M90/M72
9 SBS-XS14616K-200X φ82 4-16 16k 5μm 1.75x-2.25x 154-179 146 <0.002 >90 606-690 M95/M90/M72
10 SBS-XS14616K-300X φ82 4-16 16k 10μm 2.7x-3.5x 144-157 146 <0.002 >90 717-826 M95/M90/M72


♦ SBS-XS4016K-012X

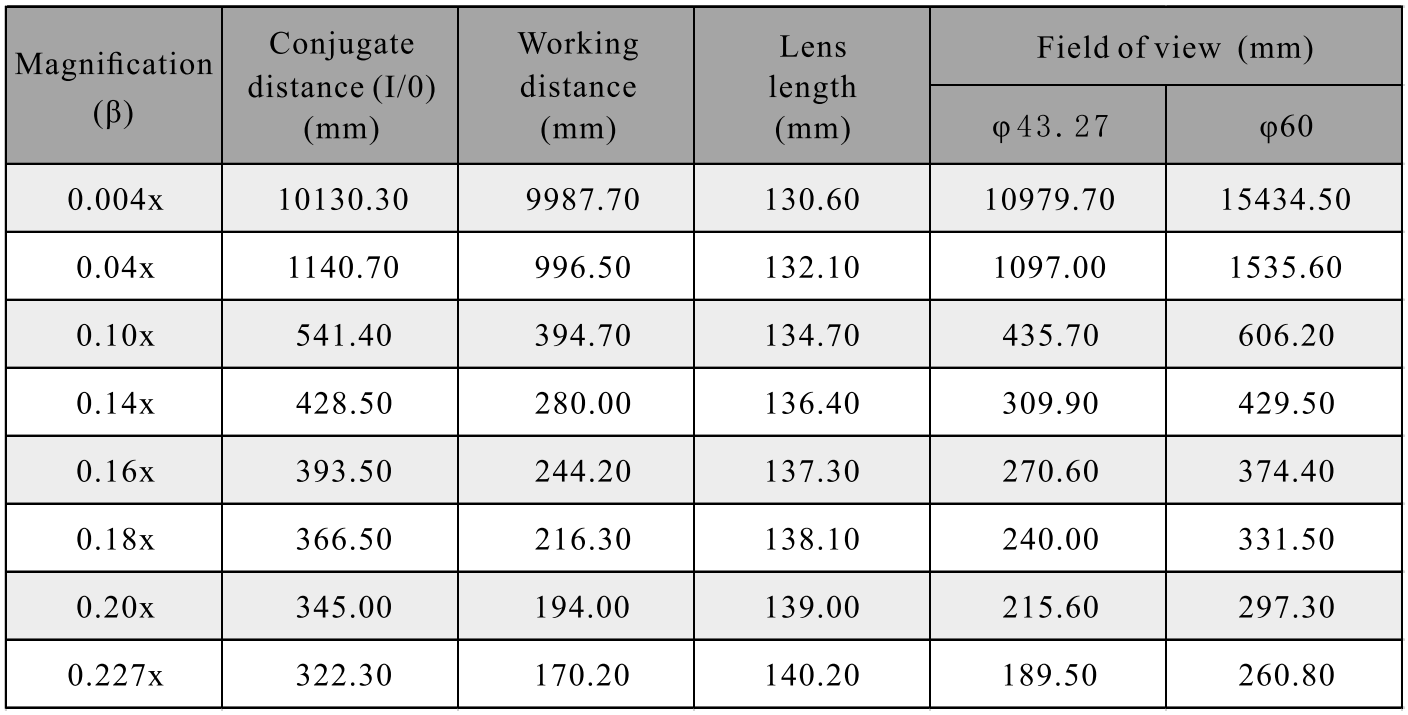

Parameter

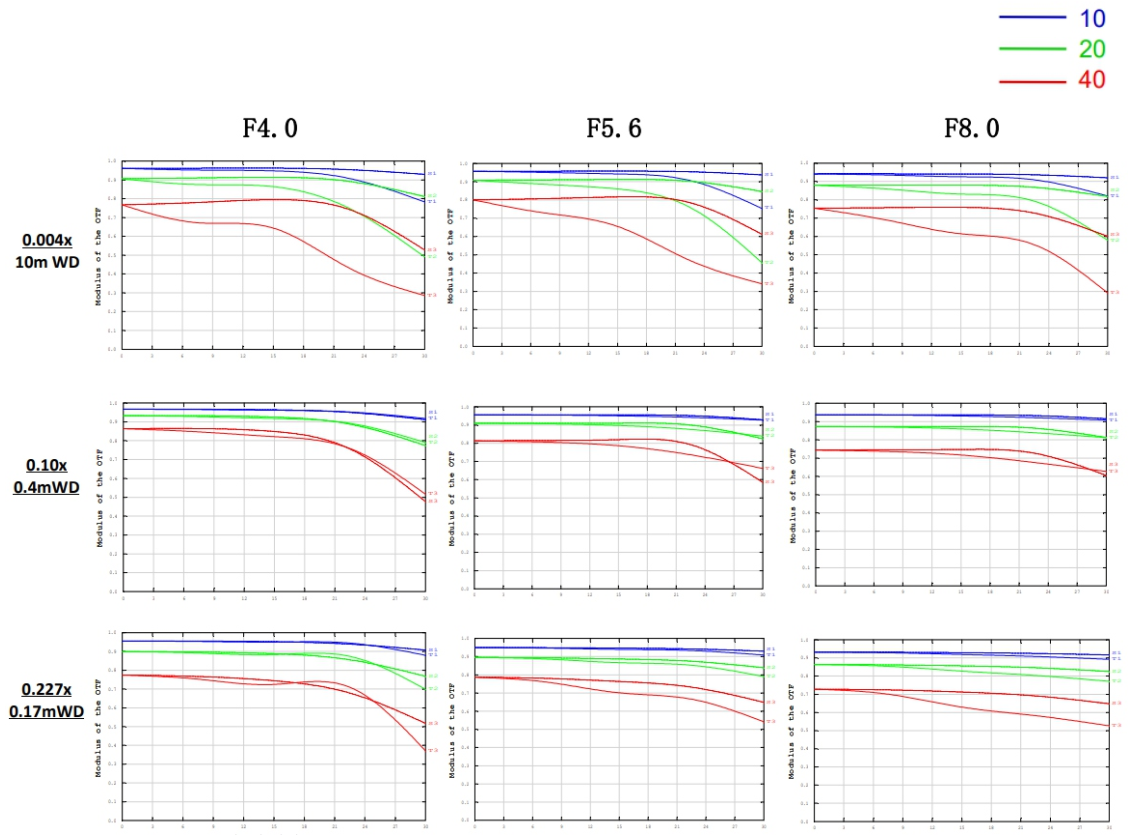

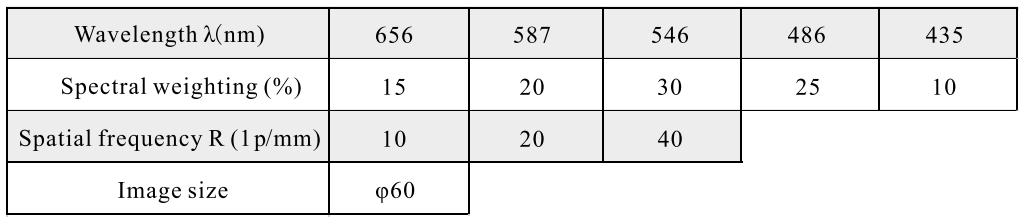

MTF based on the image height of visible spectrum
M72*0.75

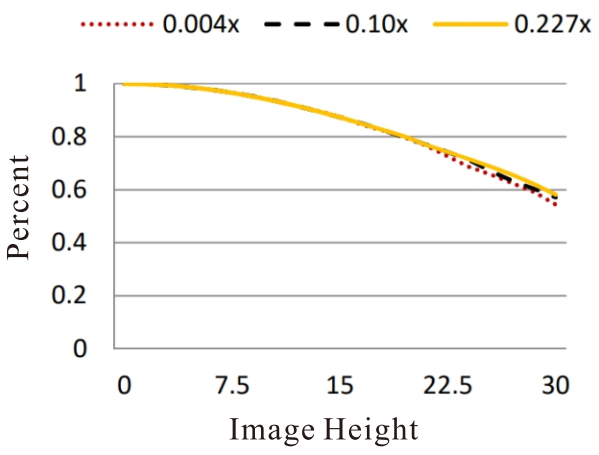

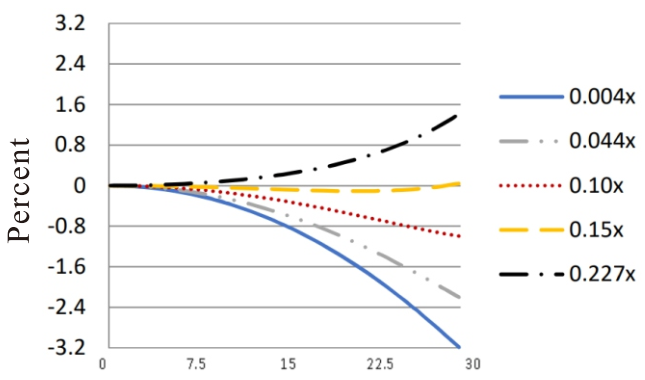

Distortion Relative Illumination

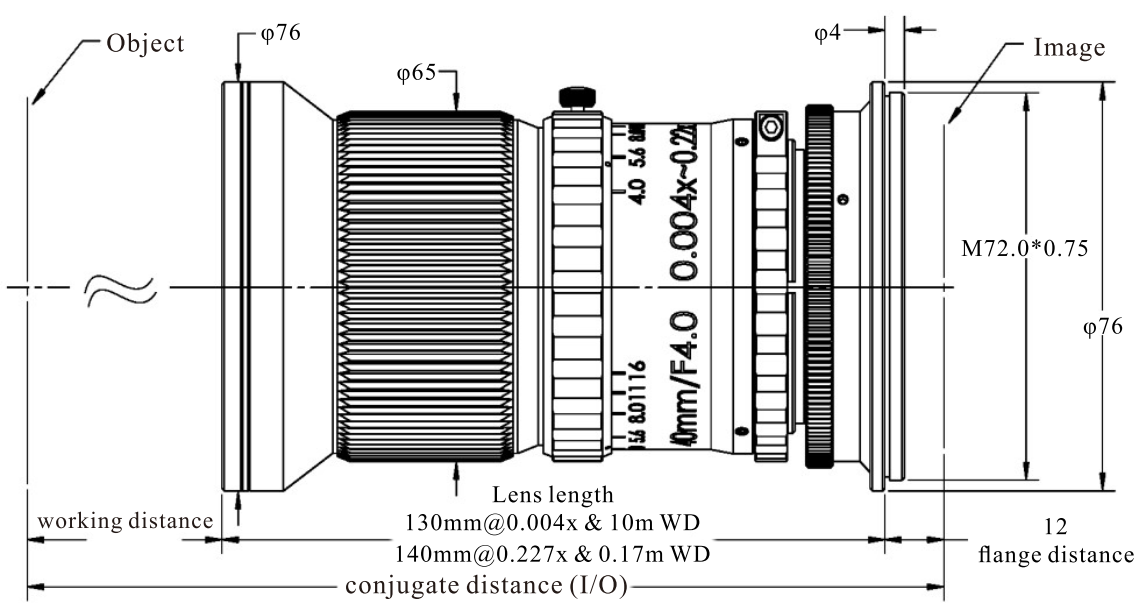

Dimensions (mm)

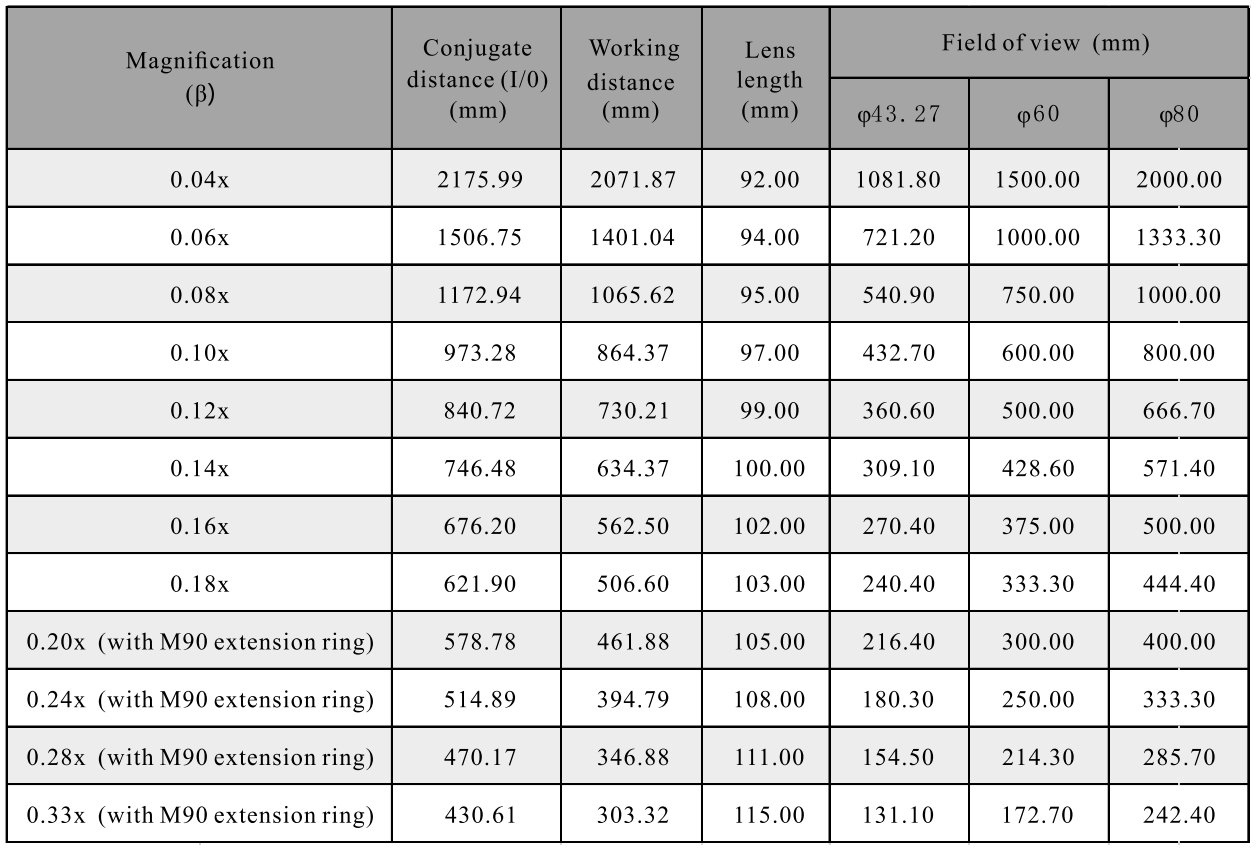

♦ SBS-XS8016K-018X

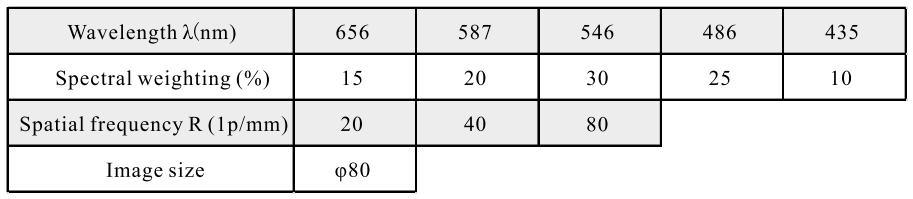

Parameter

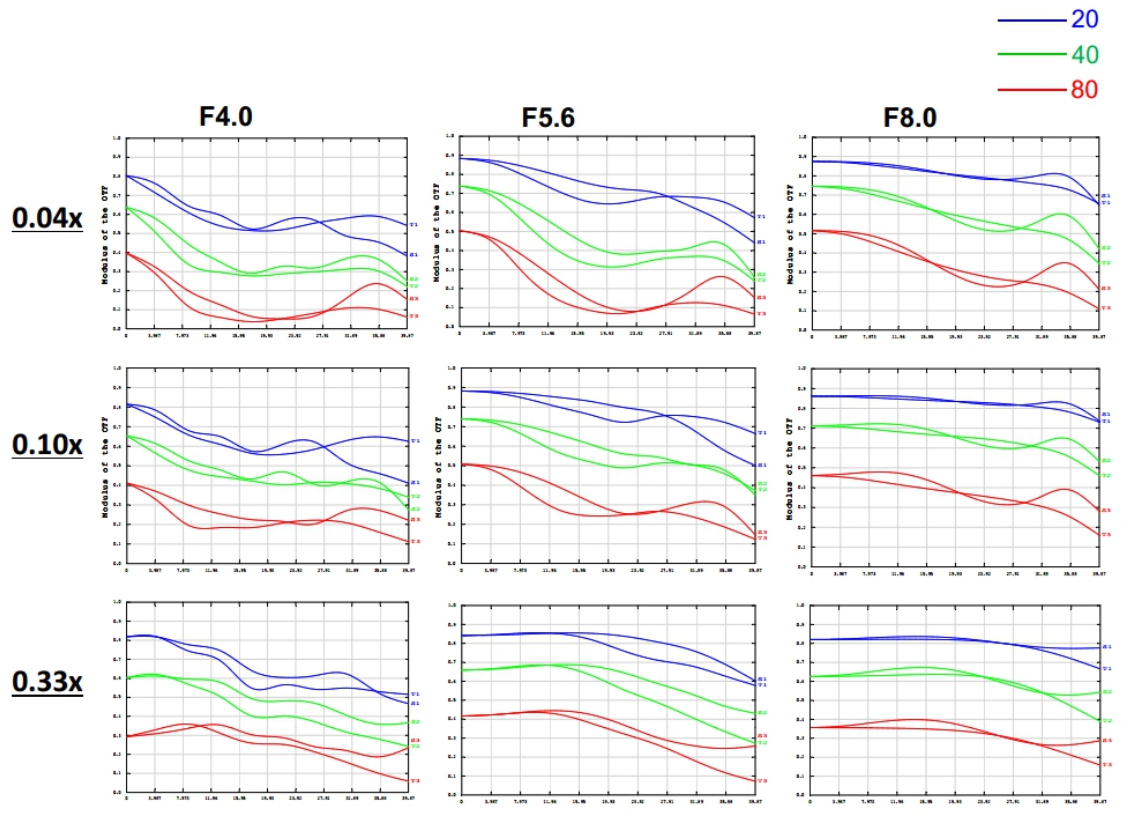

MTF based on the image height of visible spectrum

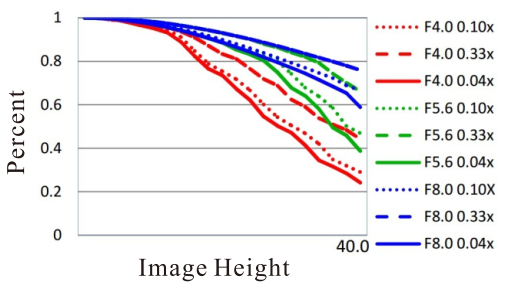

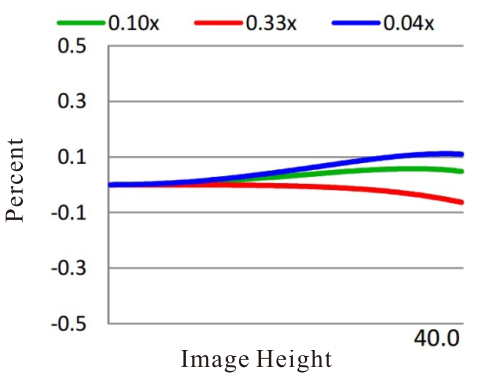

Distortion Relative Illumination

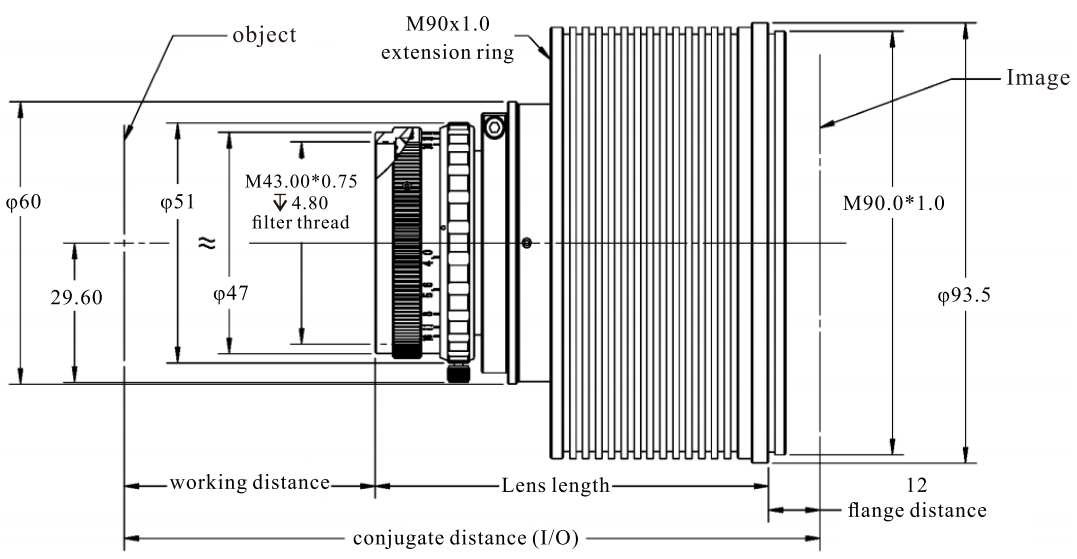

Dimensions (mm)

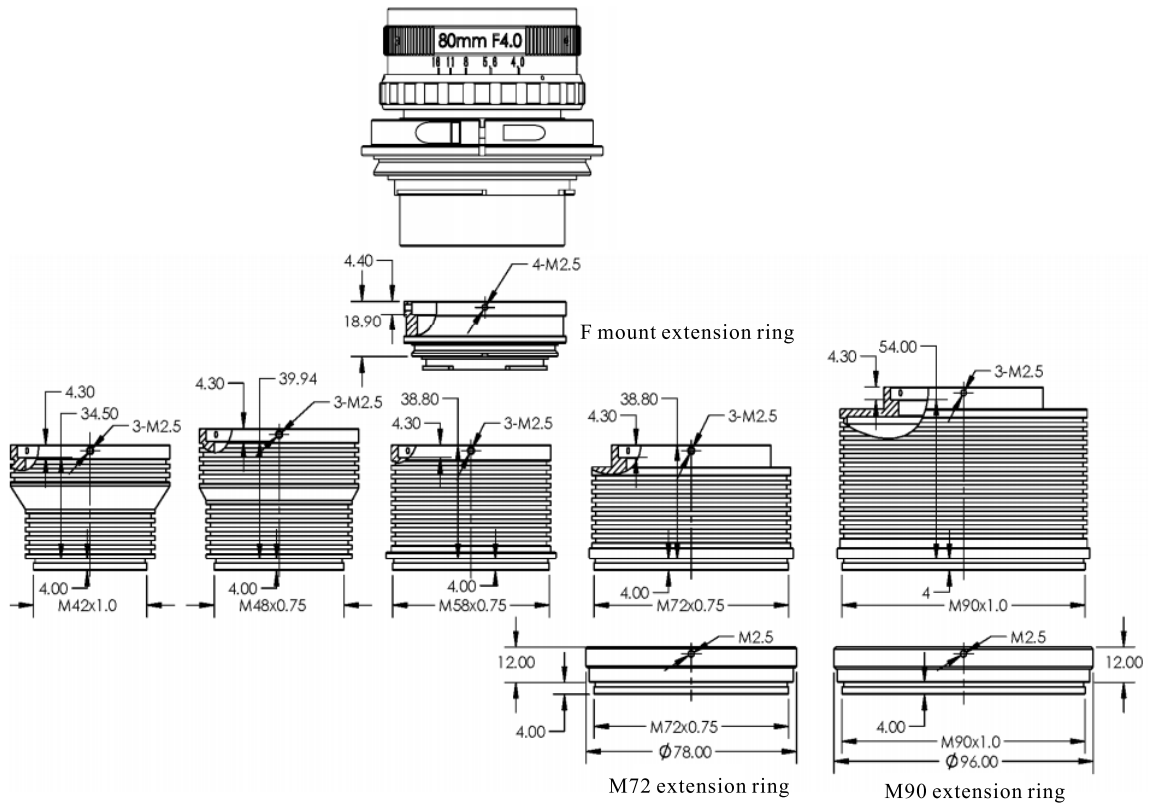

Extension ring
♦ SBS-XS14616K-026X

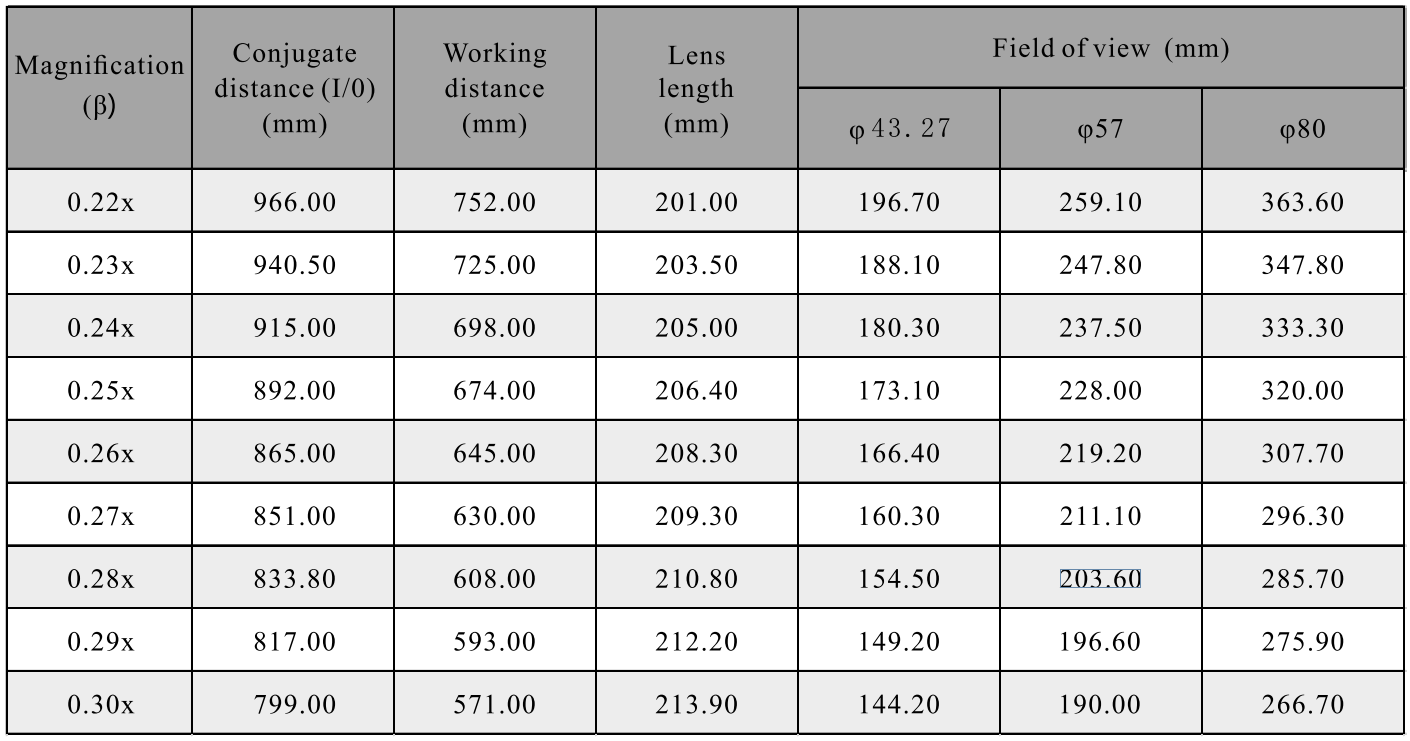

Parameter

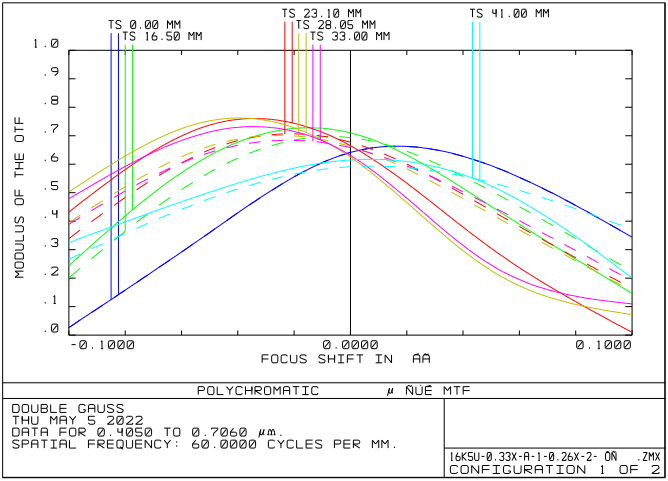

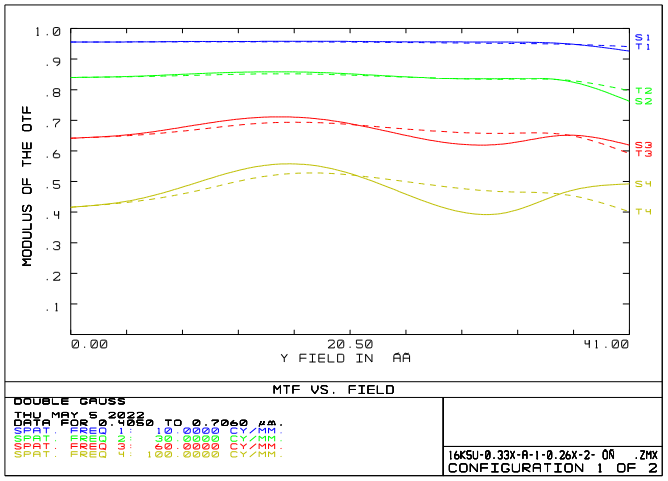

MTF VS Field 0.26x F4.0 Parameter MTF VS Through Focus

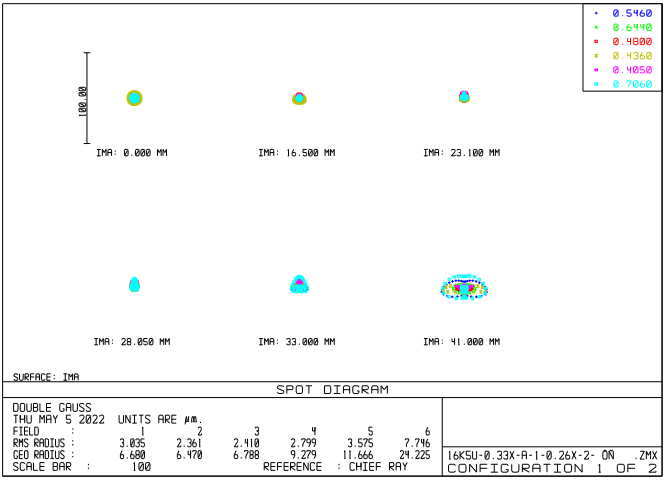

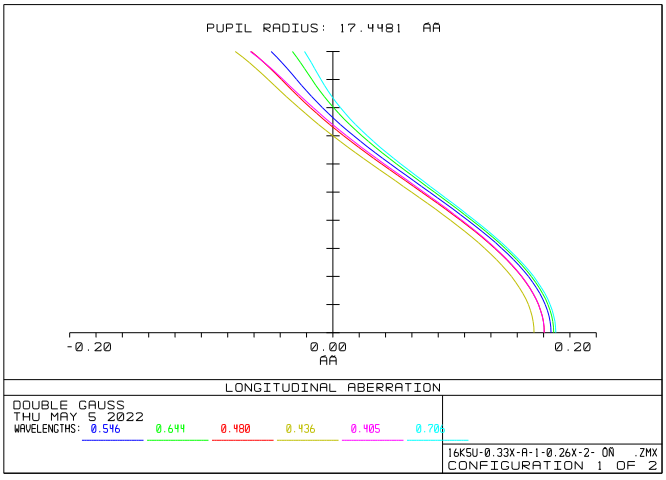

Axial Color Spot Diagram

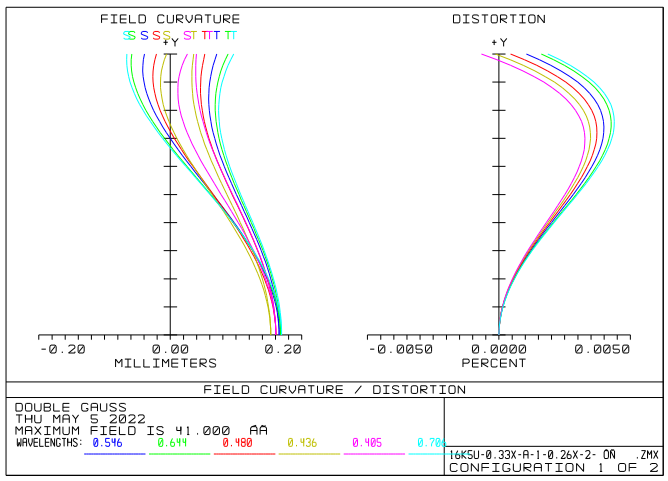

Distortion Relative Illumination

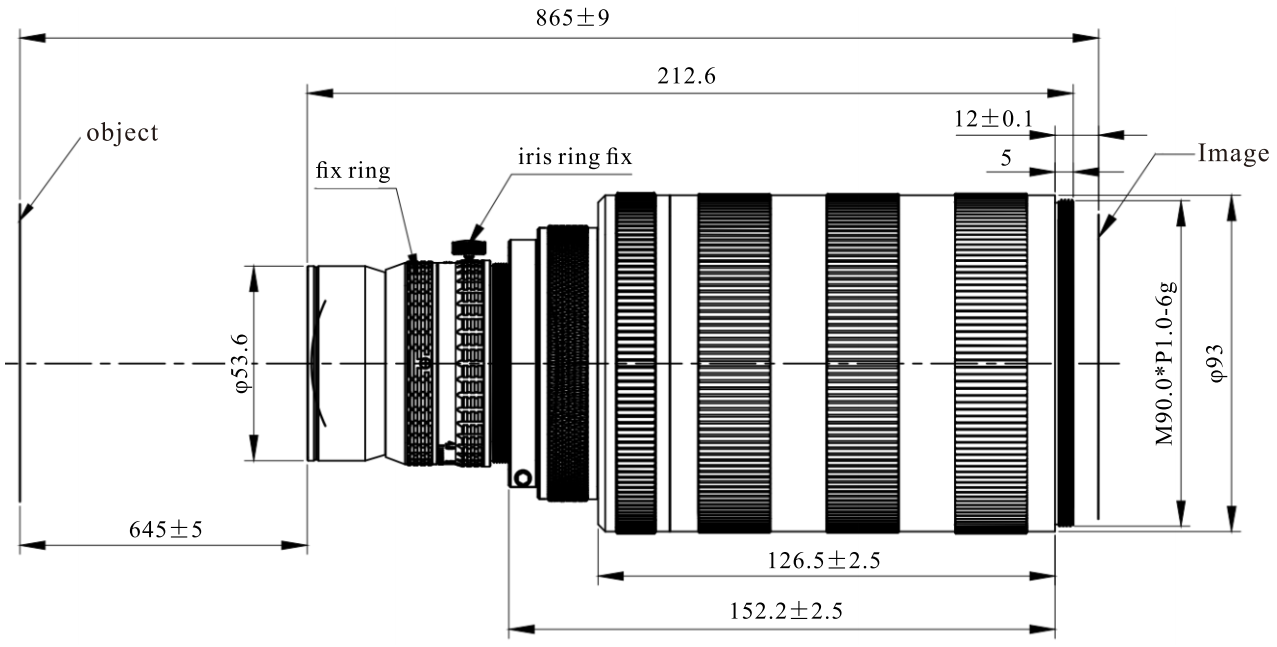

Dimensions (mm)
♦ SBS-XS14616K-033X

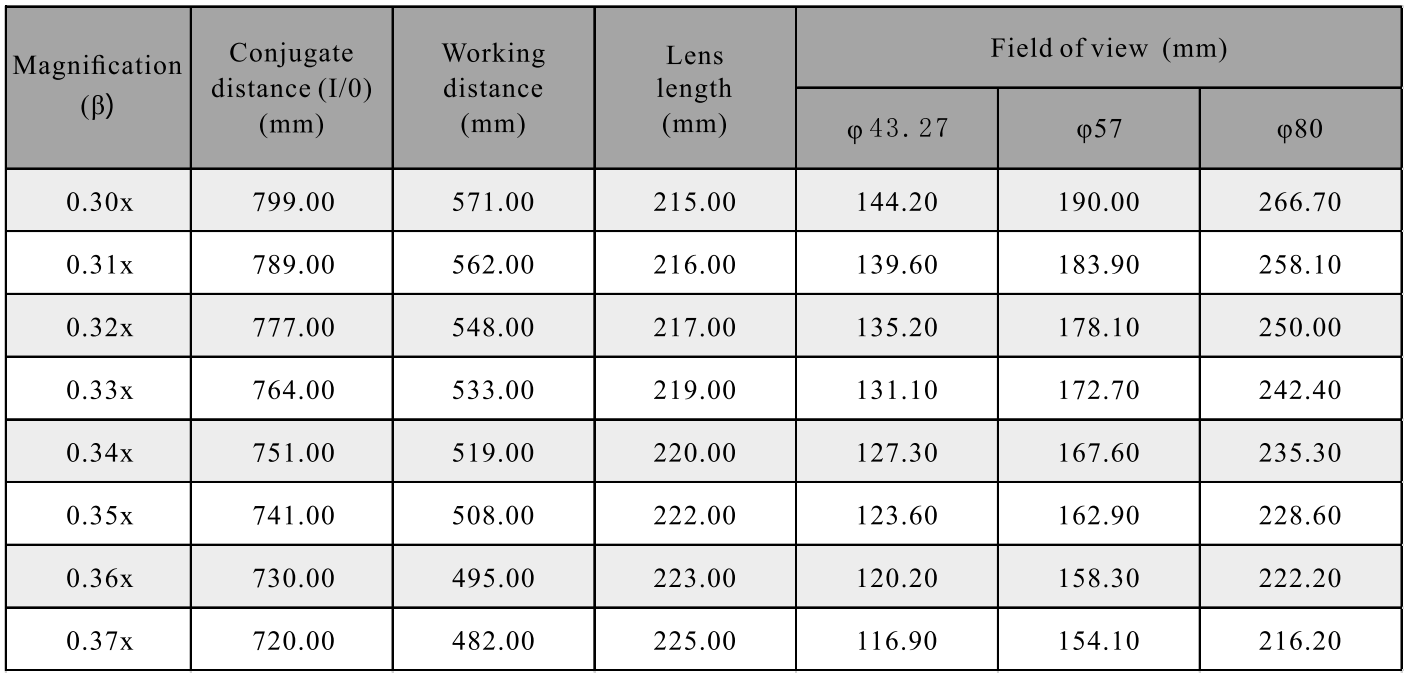

Parameter

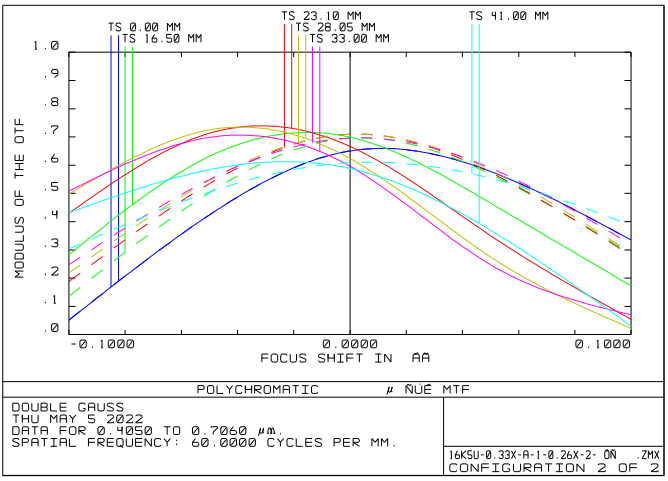

MTF VS Field 0.33x F4.0 MTF VS Through Focus

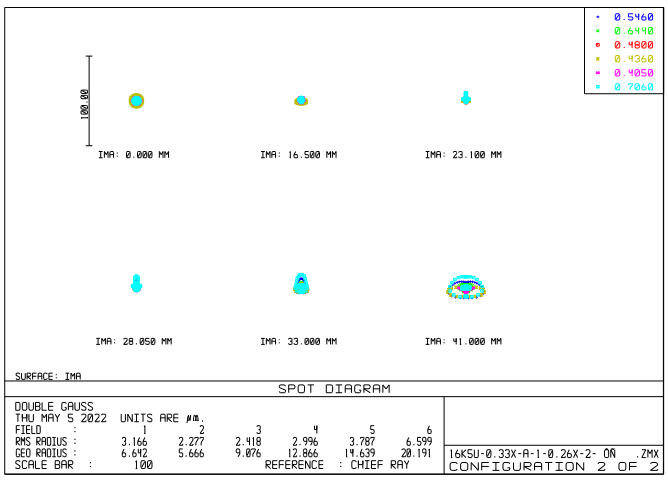

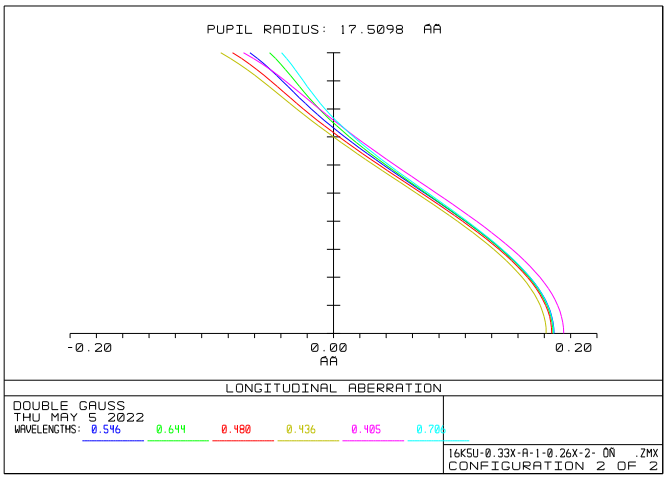

Axial Color Spot Diagram

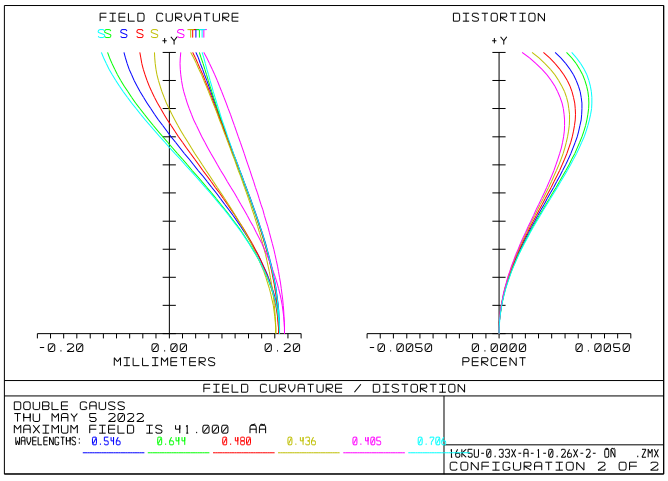

Distortion Relative Illumination

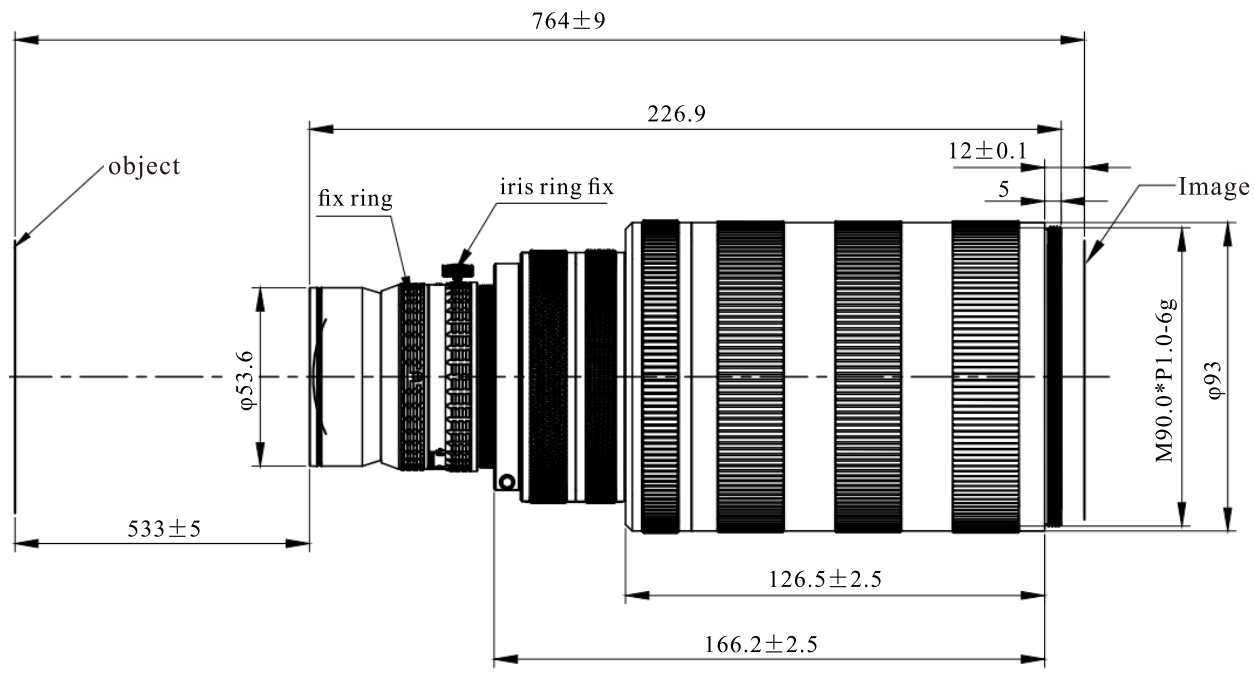

Dimensions (mm)
♦ SBS-XS14616K-050X

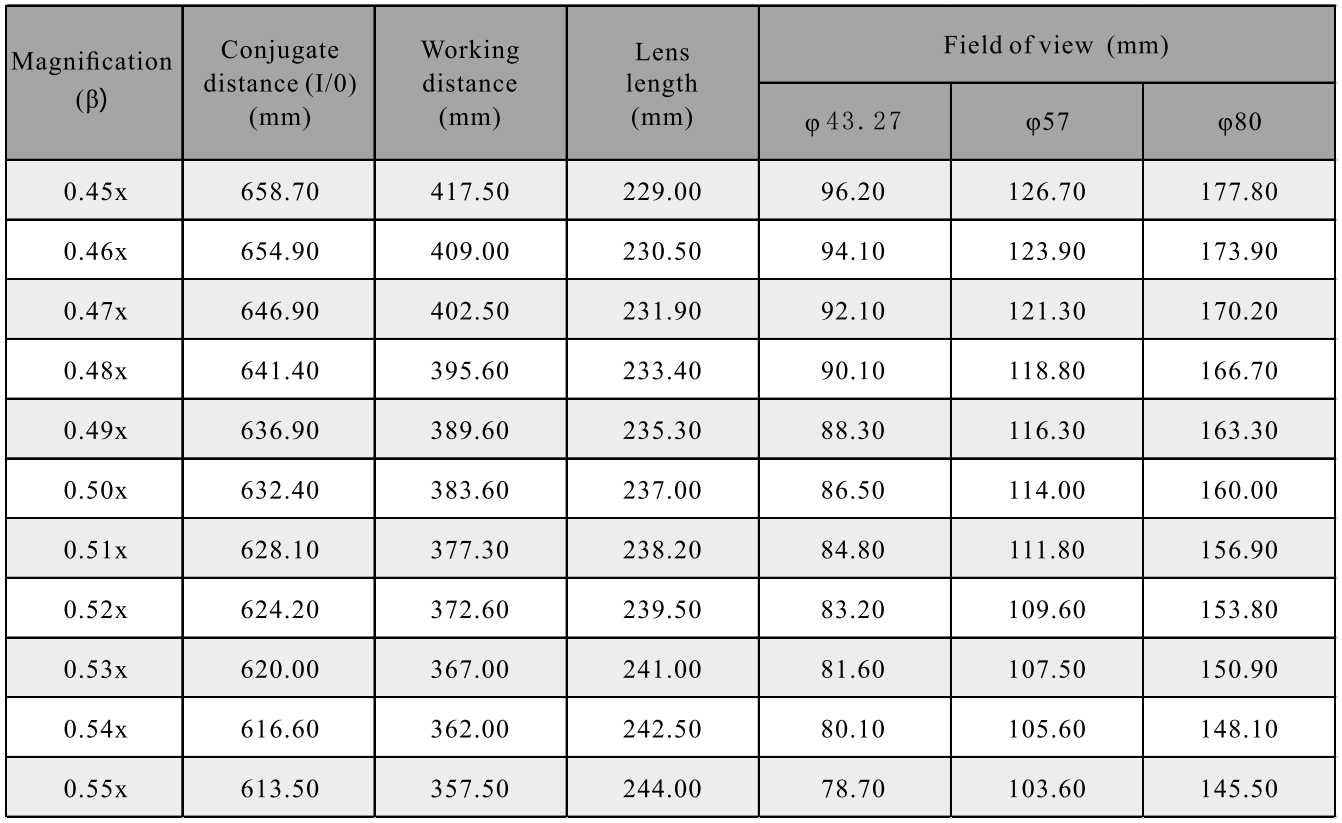

Parameter

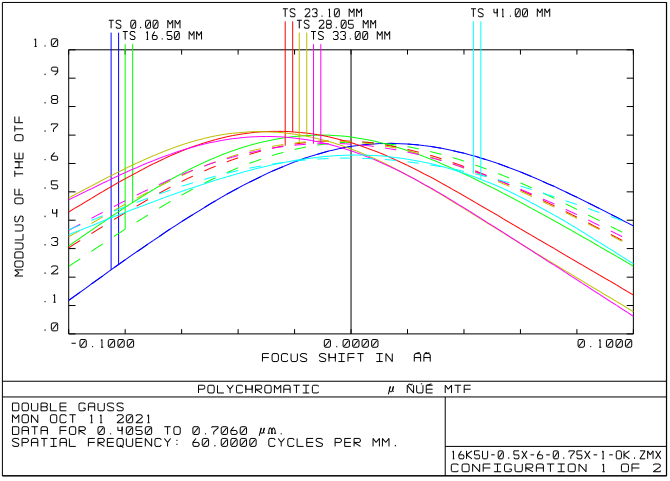

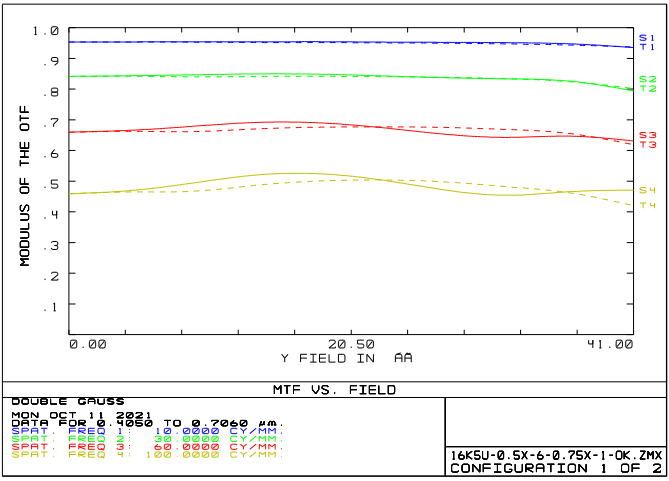

MTF VS Field 0.50x F4.0 MTF VS Through Focus

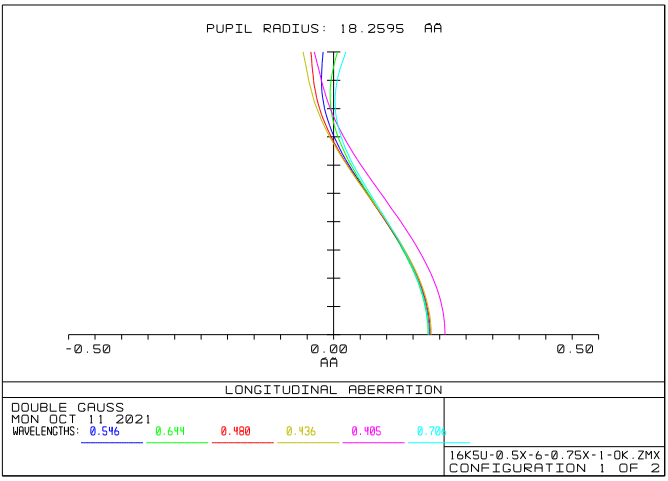

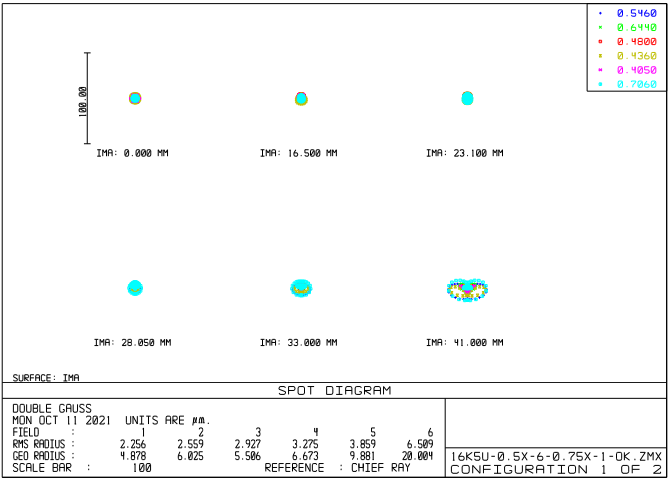

Axial Color Spot Diagram

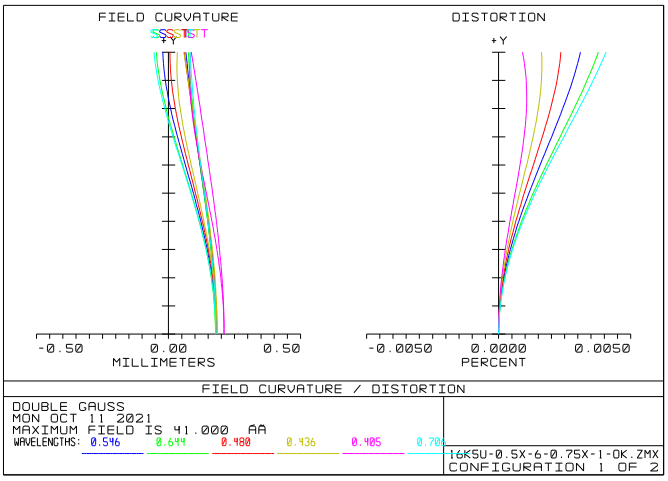

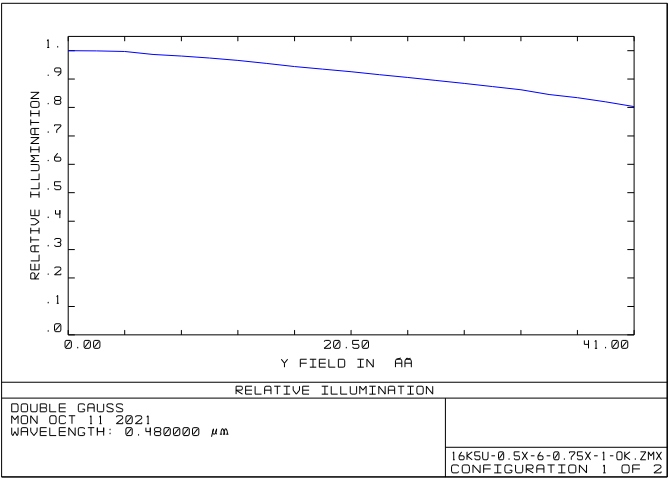

Distortion Relative Illumination

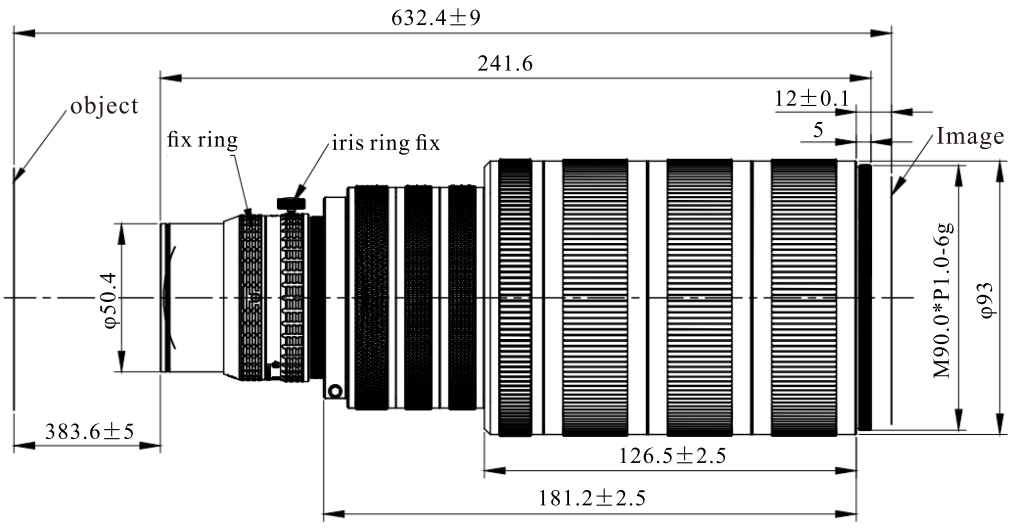

Dimensions (mm)

♦ SBS-XS14616K-075X

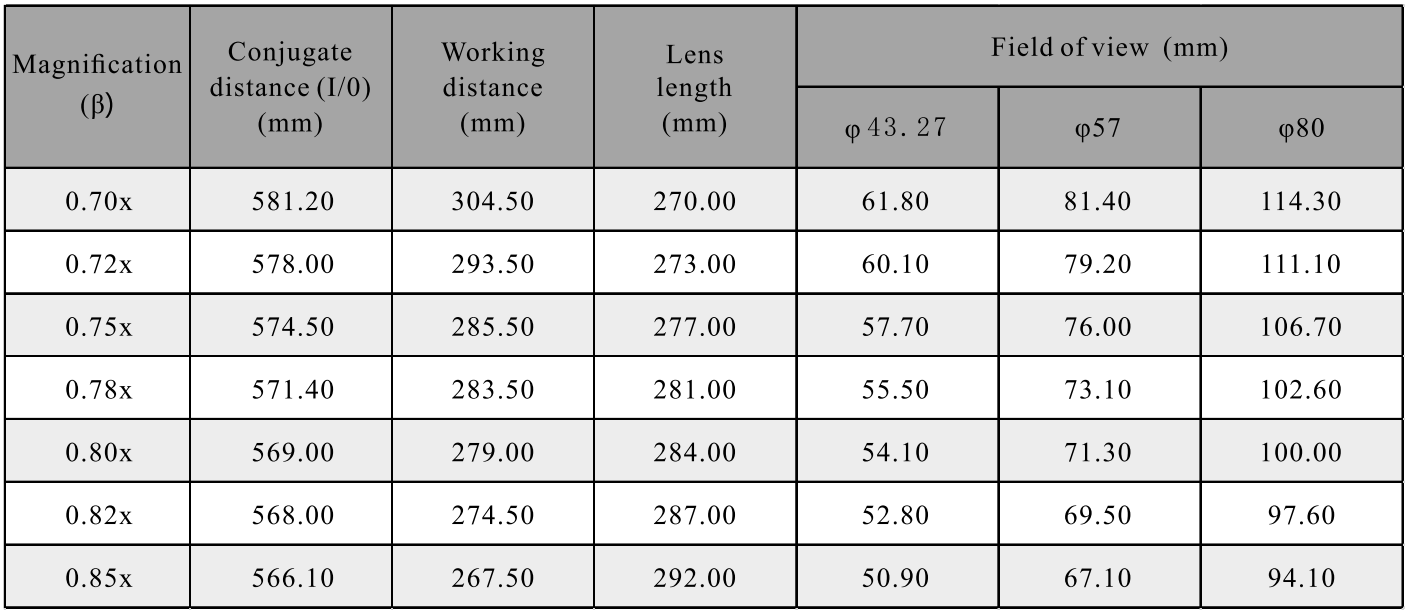

Parameter
MTF VS Field 0.75x F4.0 MTF VS Through Focus

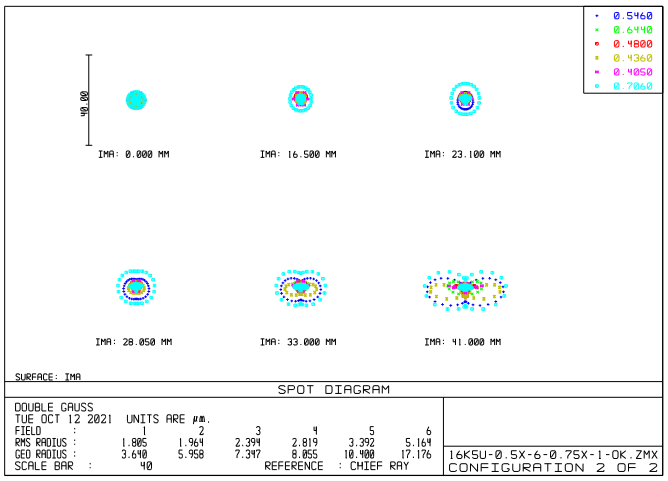

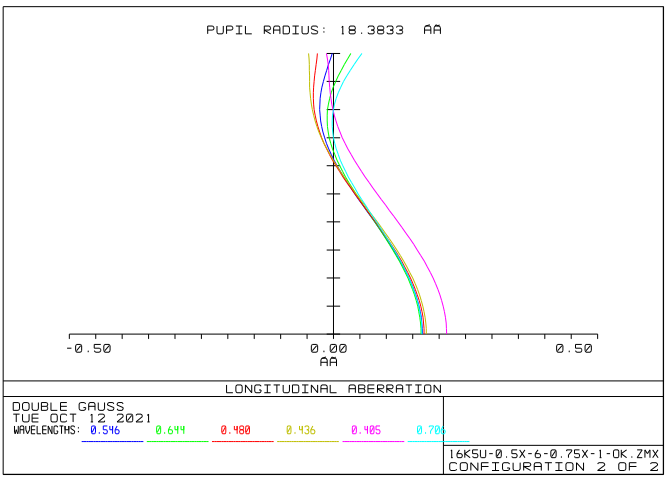

Axial Color Spot Diagram

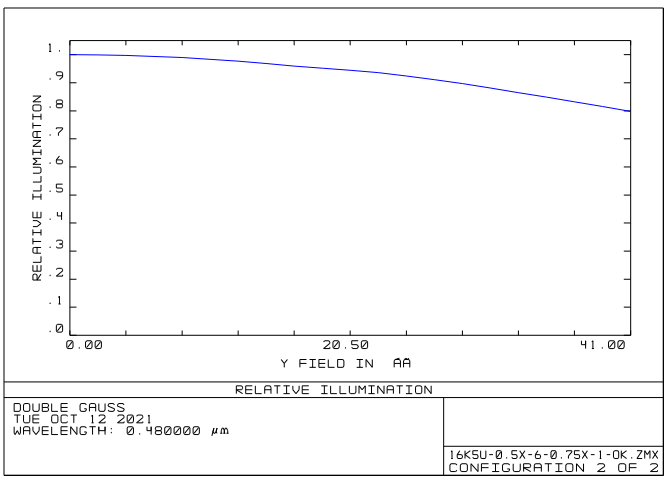

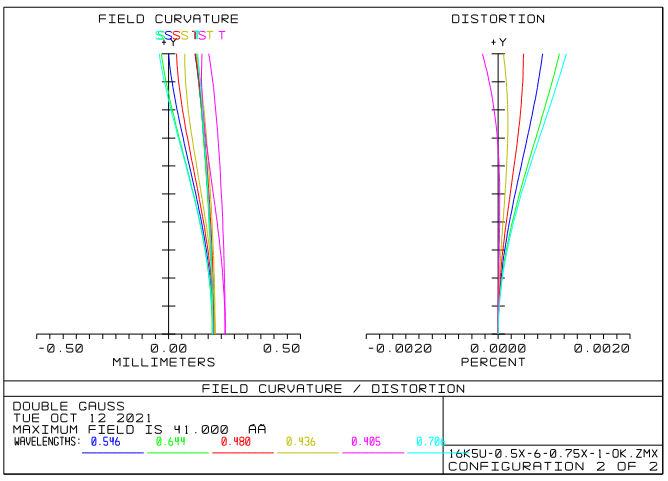

Distortion Relative Illumination

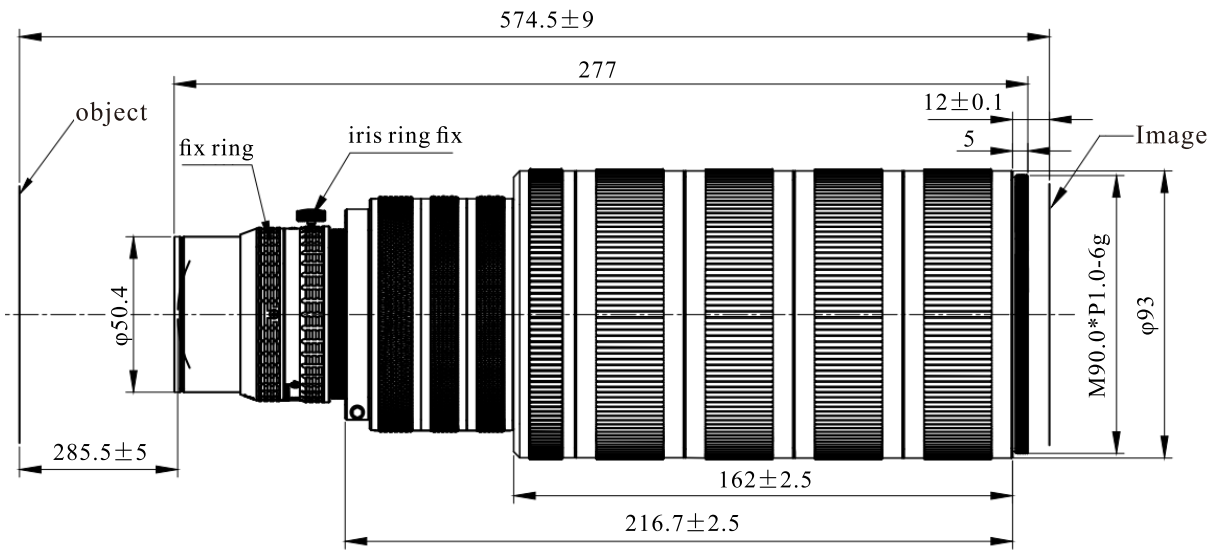

Dimensions (mm)

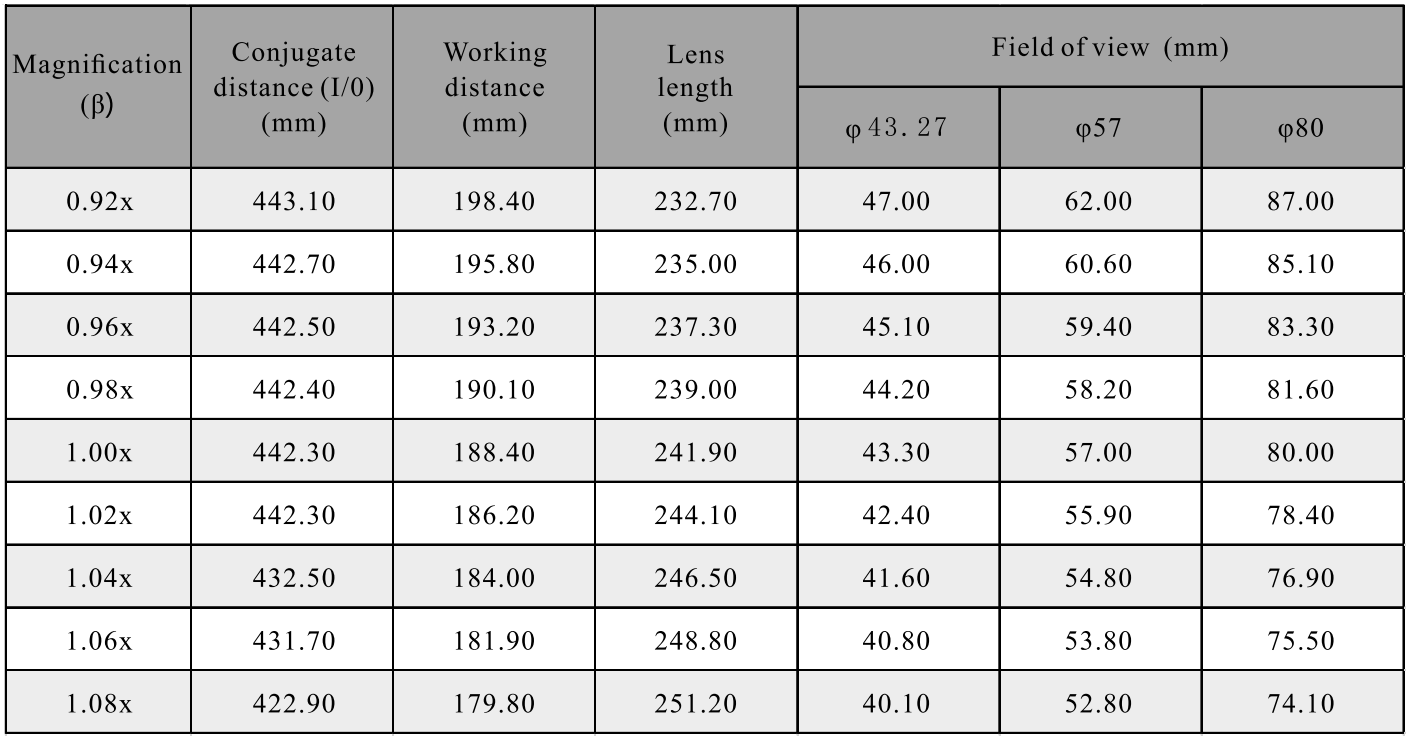

♦ SBS-XS14616K-100X
Parameter

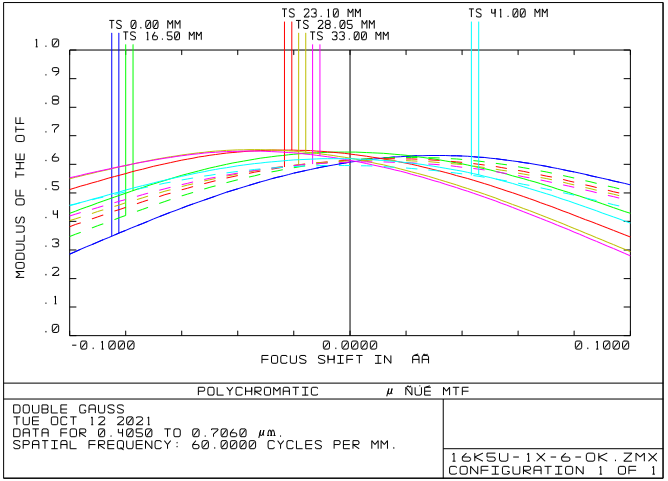

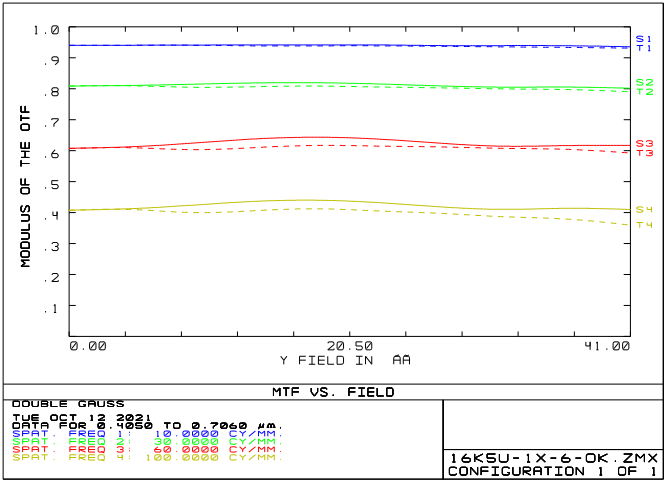

MTF VS Field 1.00x F4.0 MTF VS Through Focus

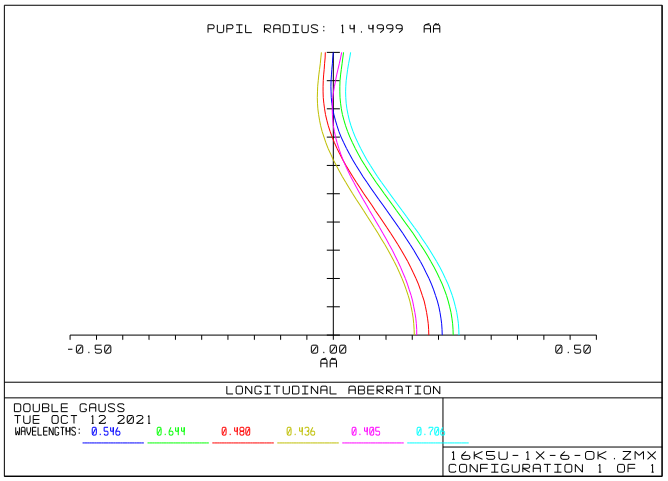

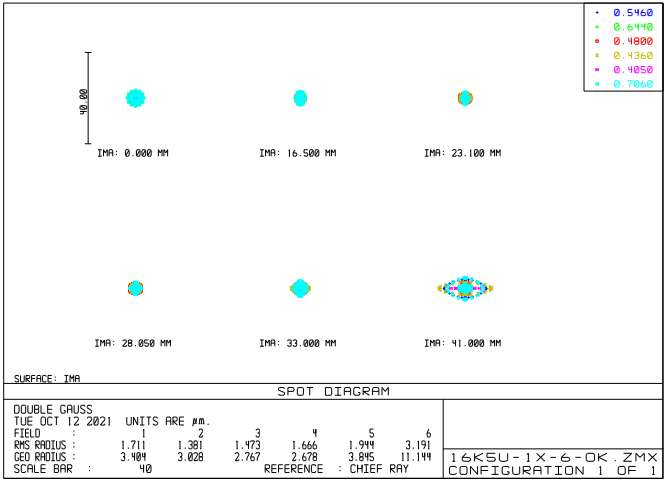

Axial Color Spot Diagram

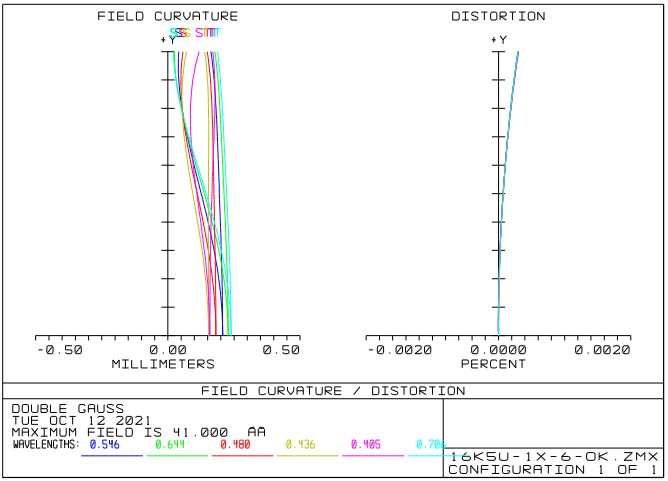

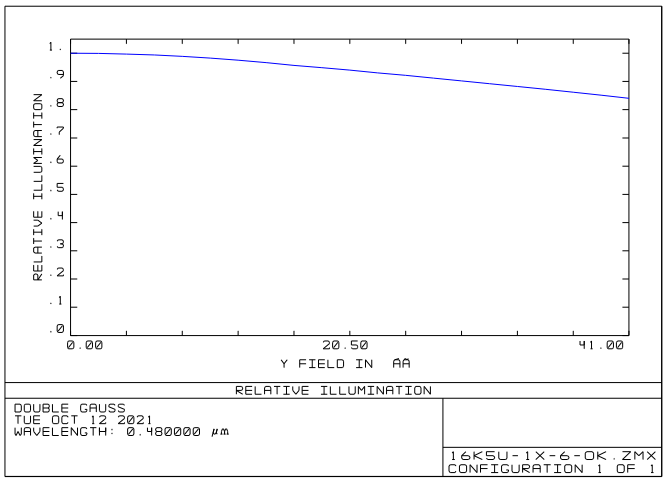

Distortion Relative Illumination

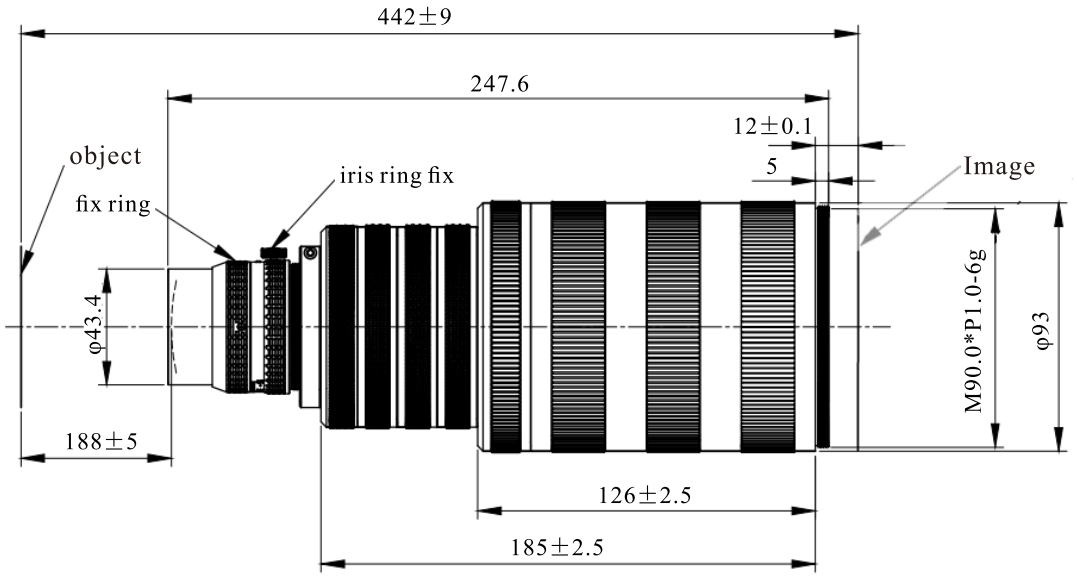

Dimensions (mm)

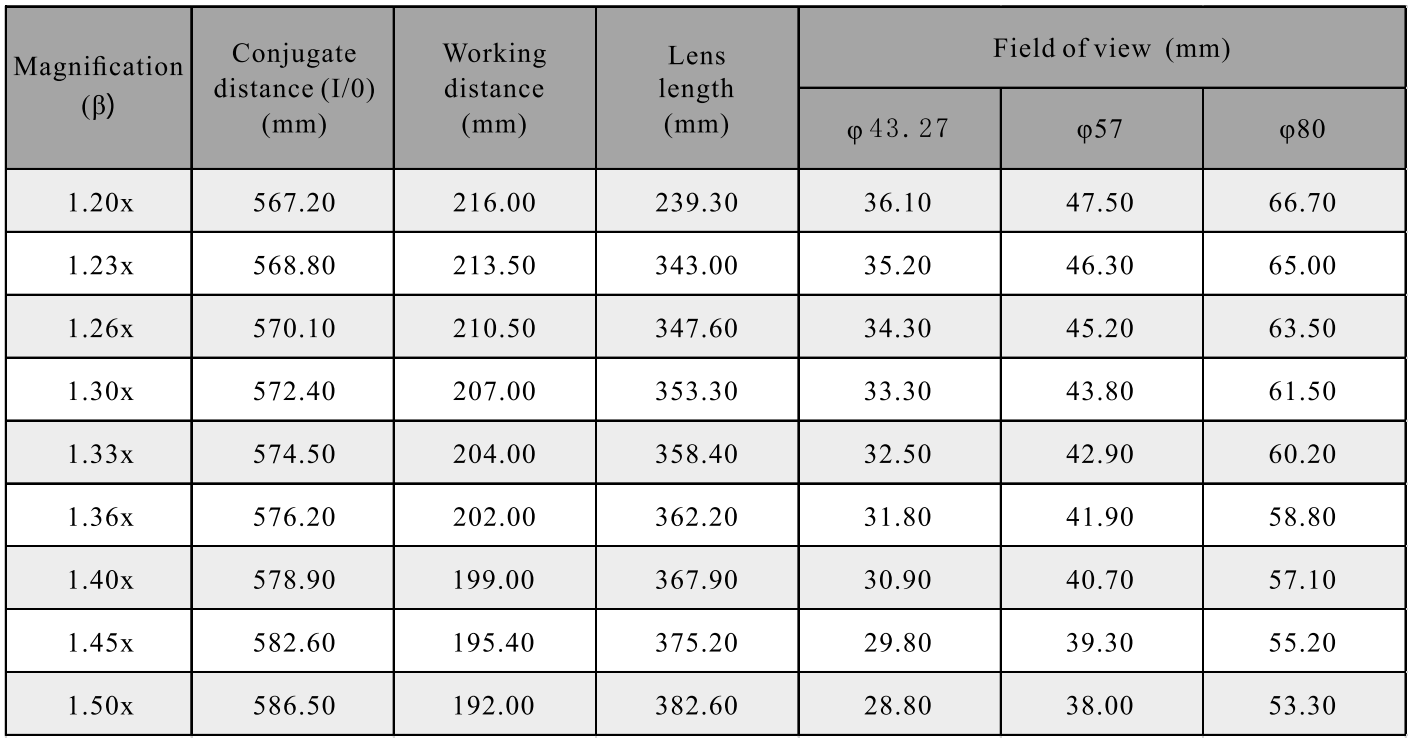

♦ SBS-XS14616K-133X
Parameter

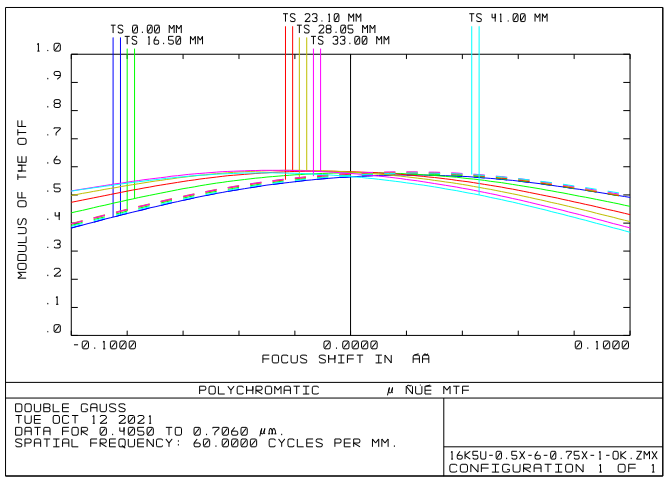

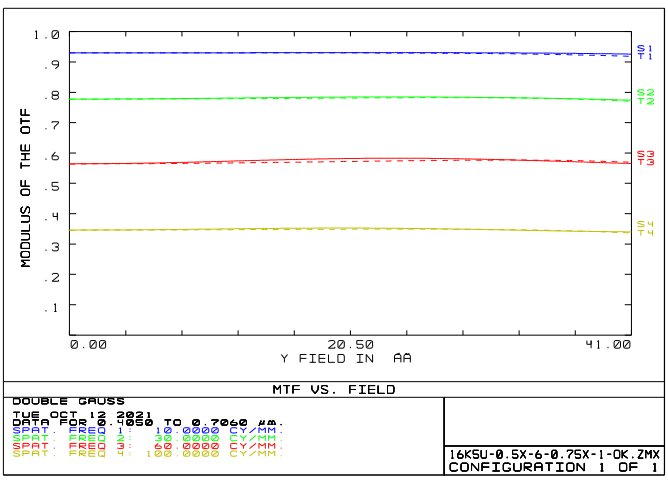

MTF VS Field 1.33x F4.0 MTF VS Through Focus

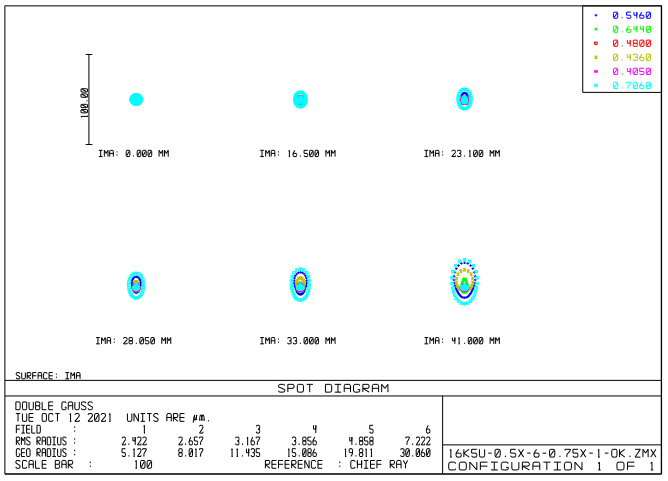

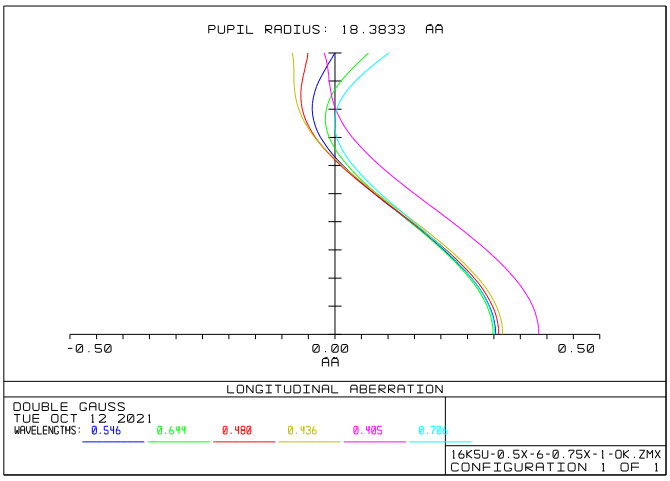

Axial Color Spot Diagram

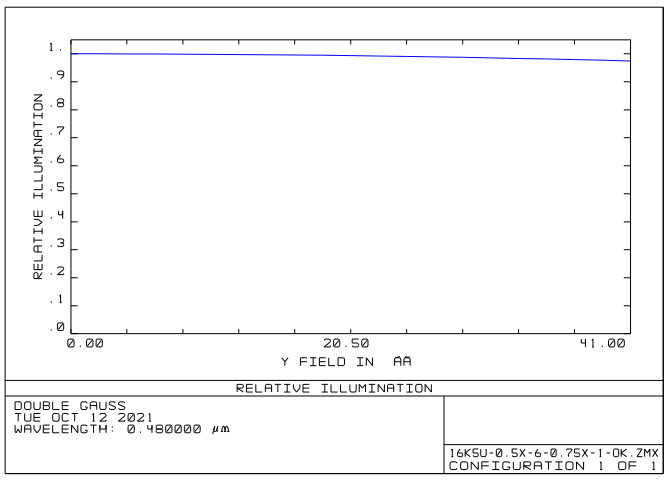

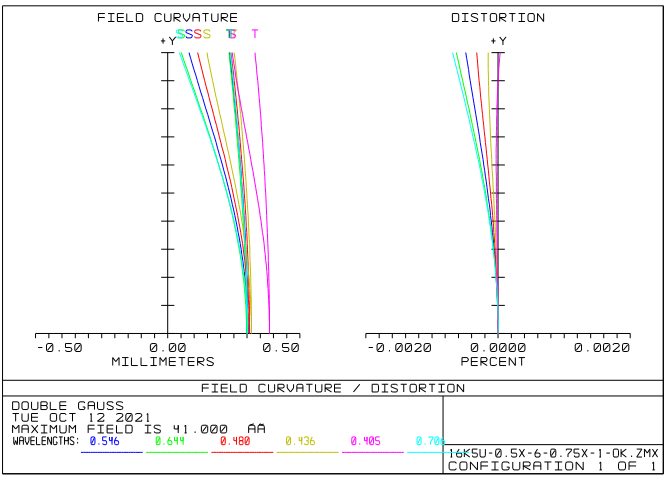

Distortion Relative Illumination

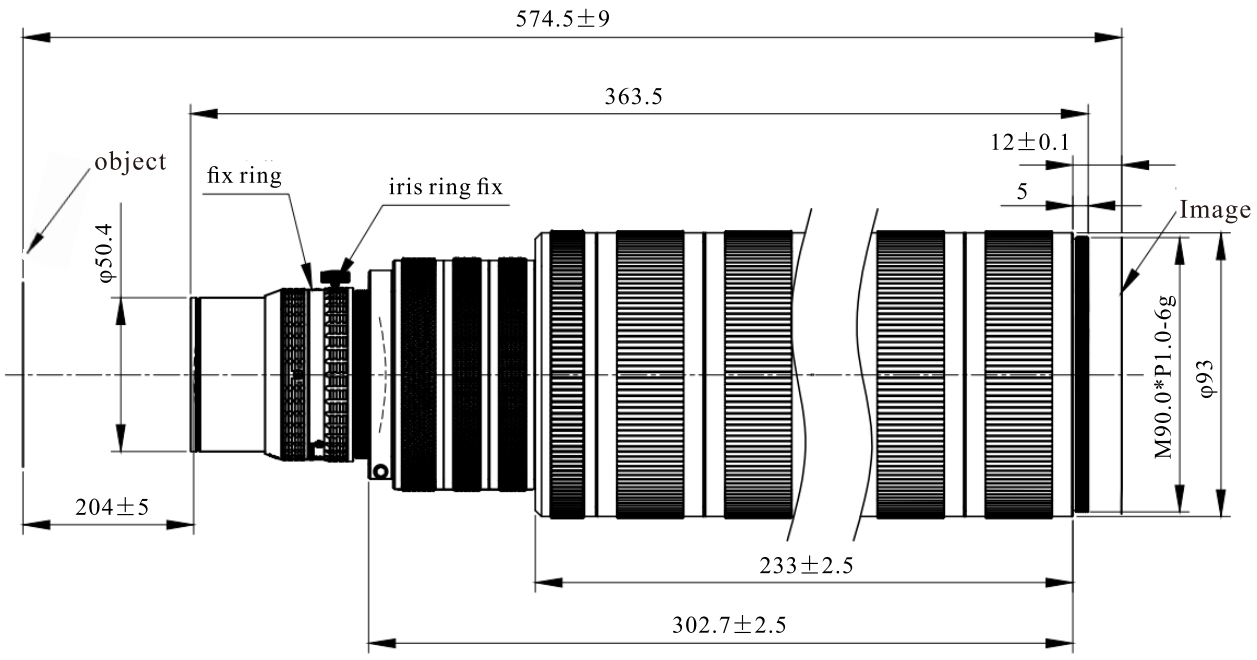

Dimensions (mm)
♦ SBS-XS14616K-200X

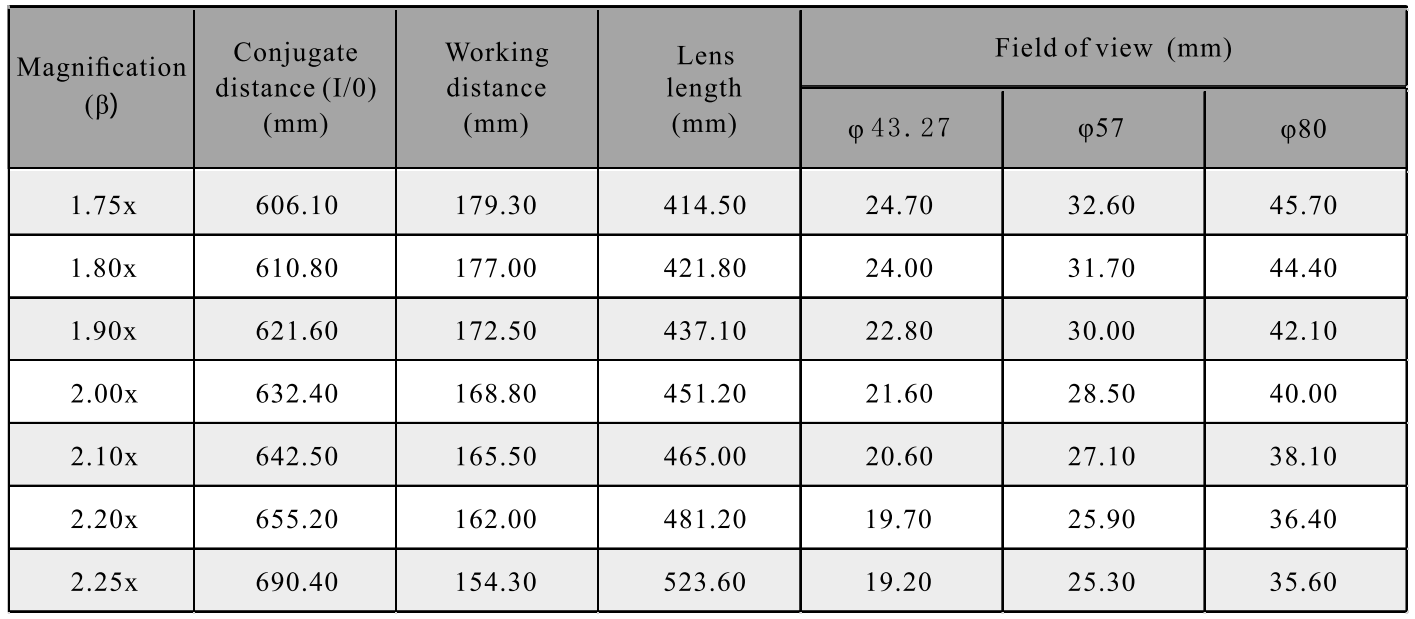

Parameter

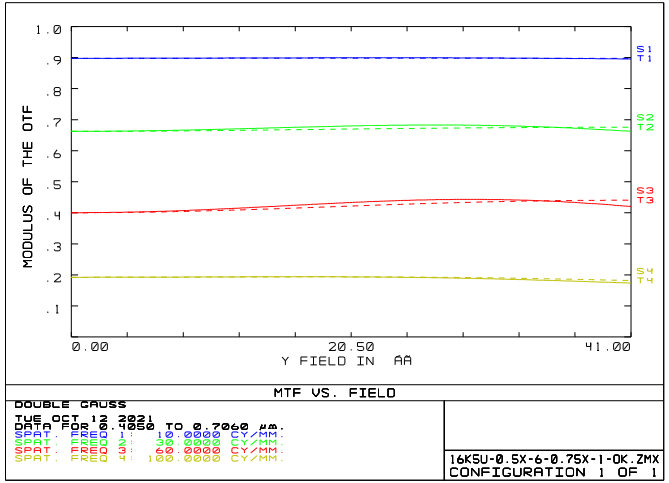

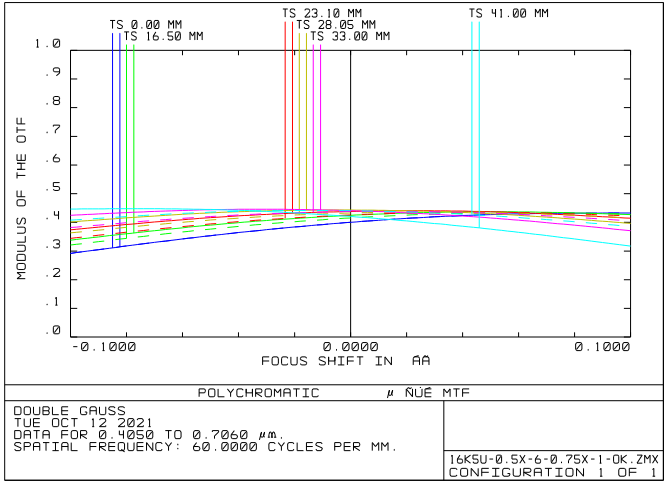

MTF VS Field 2.00x F4.0 MTF VS Through Focus

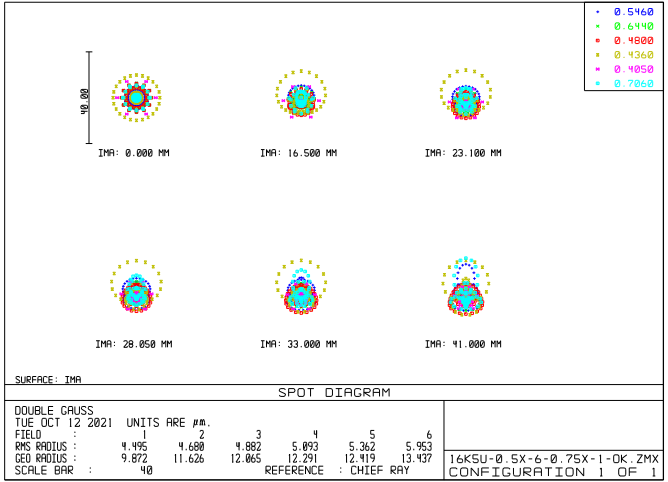

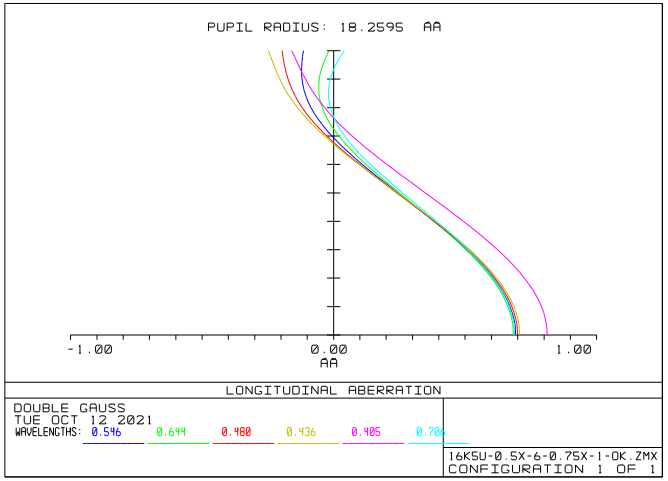

Axial Color Spot Diagram

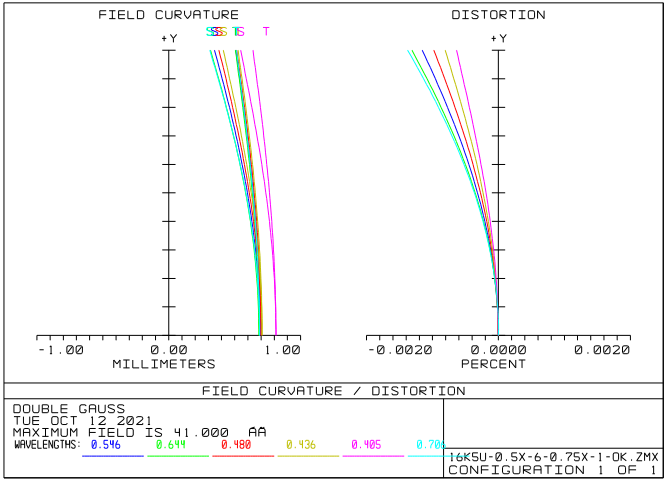

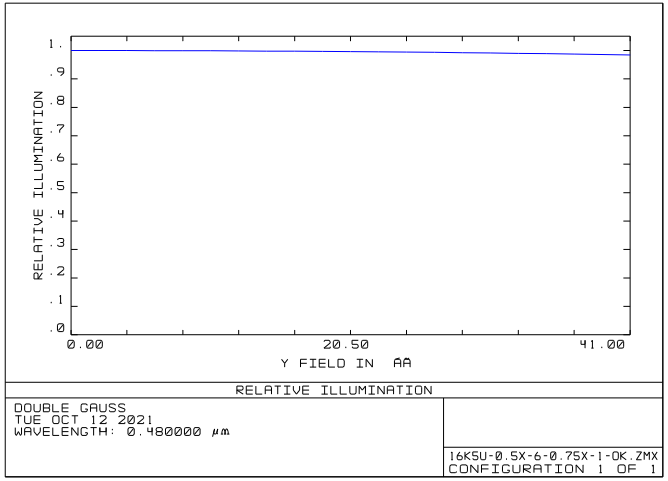

Distortion Relative Illumination

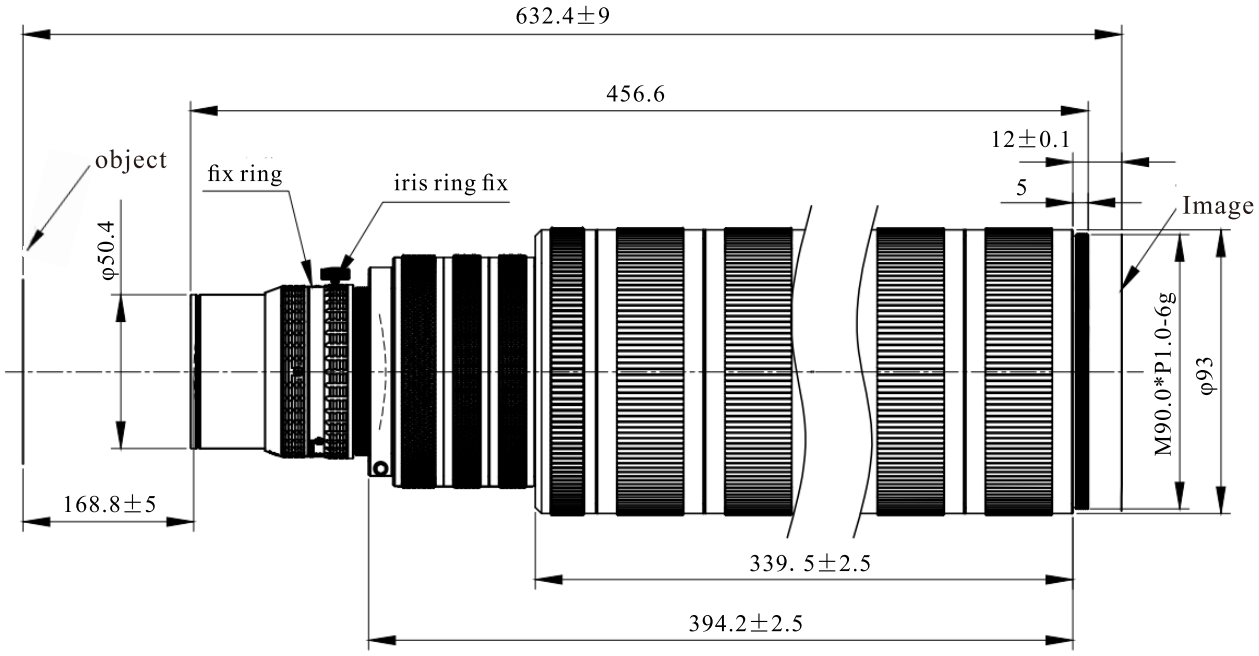

Dimensions (mm)
♦ SBS-XS14616K-300X

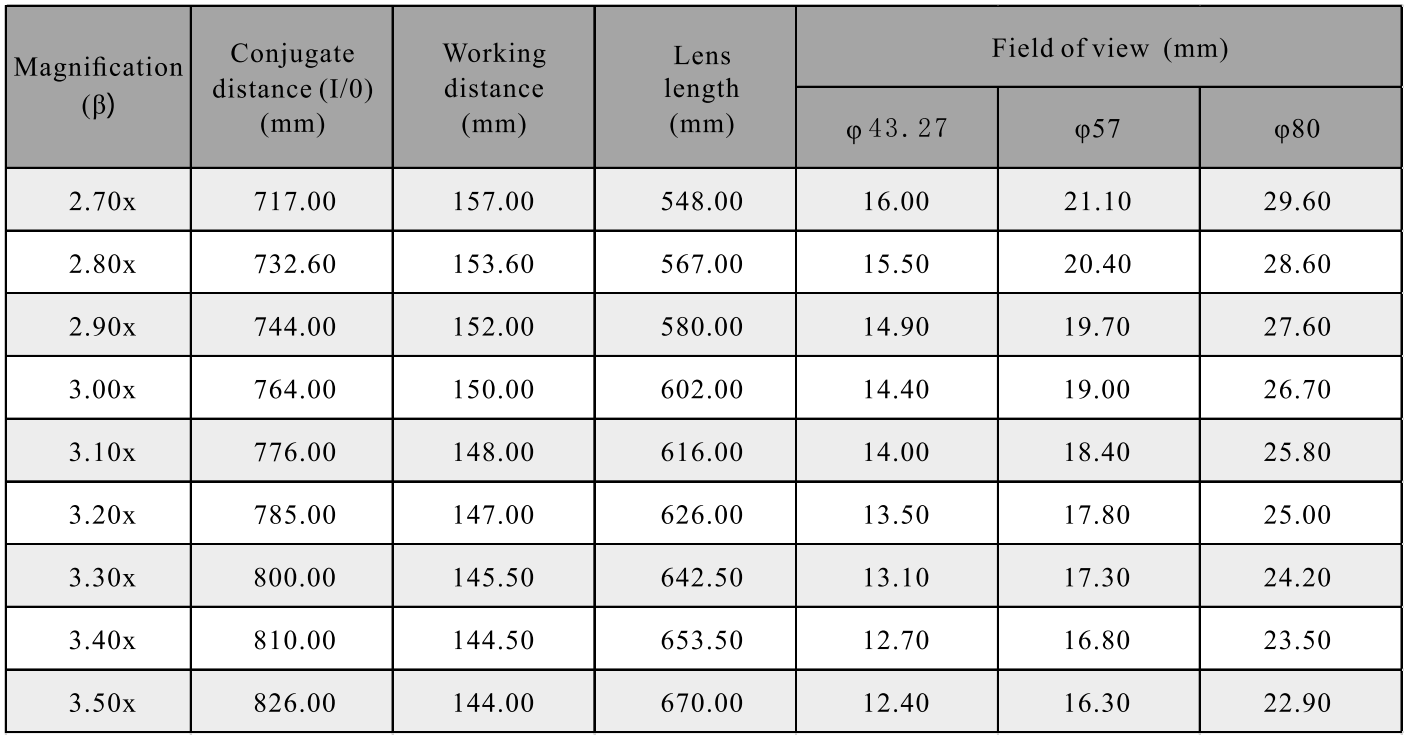

Parameter

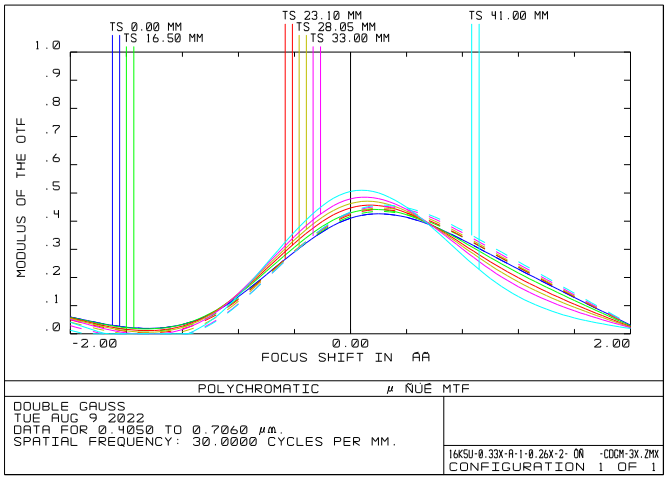

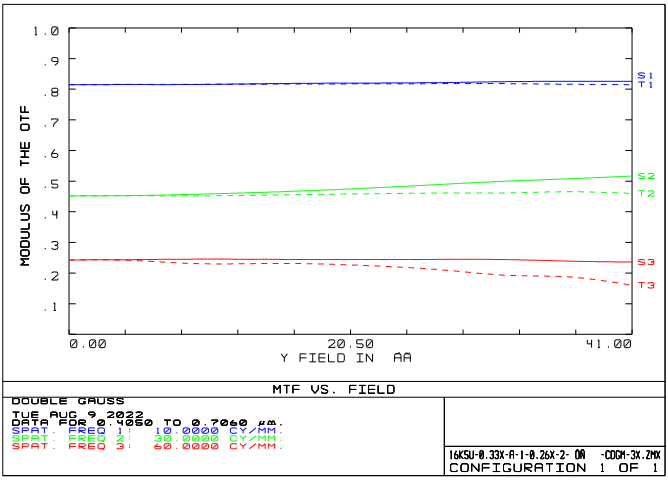

MTF VS Field 3.00x F4.0 MTF VS Through Focus

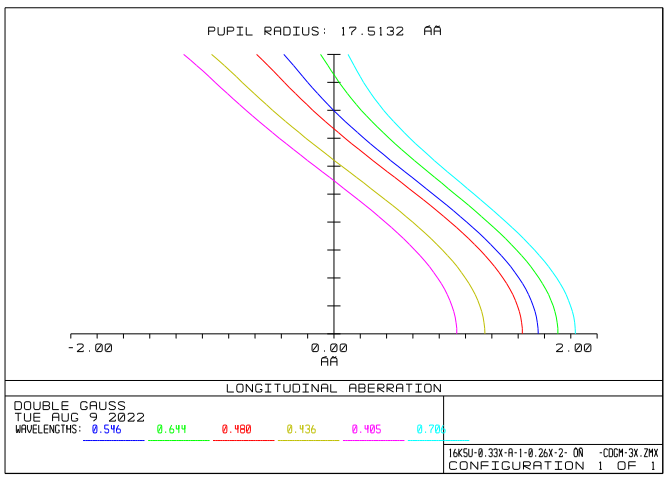

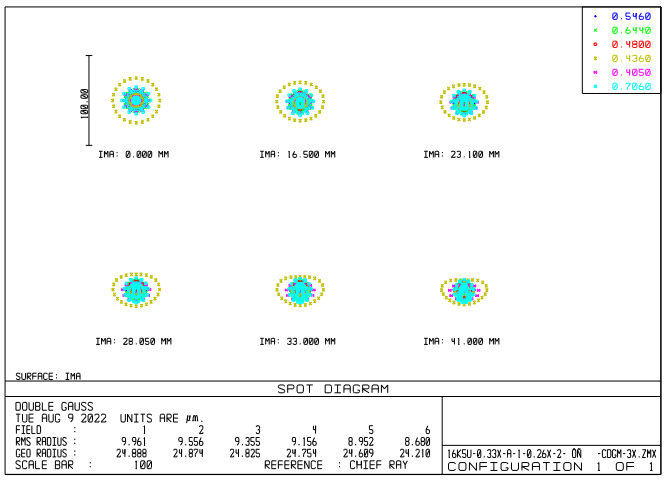

Axial Color Spot Diagram

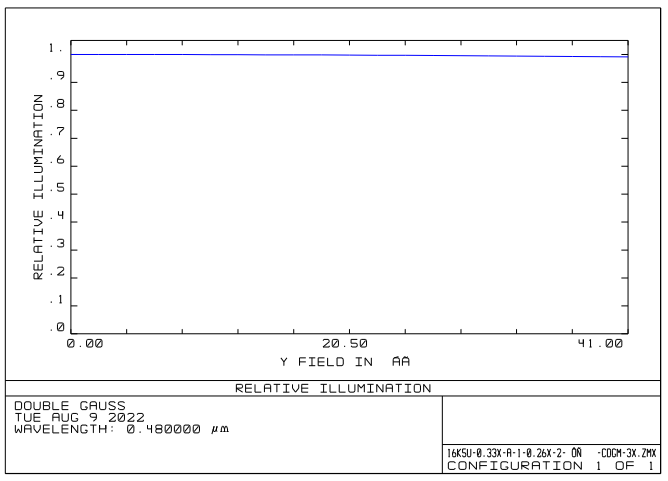

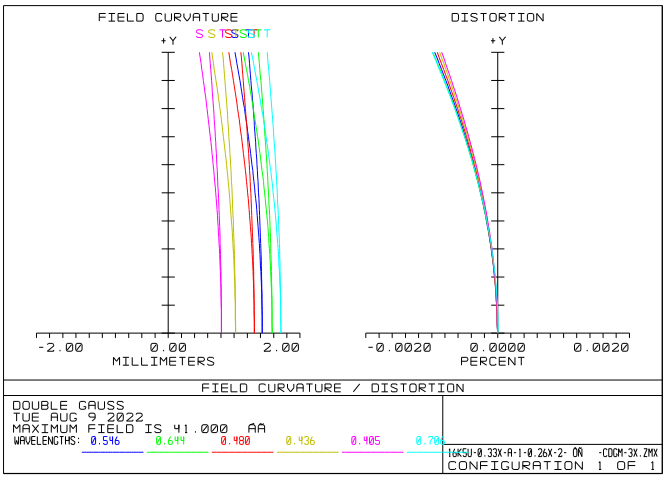

Distortion Relative Illumination

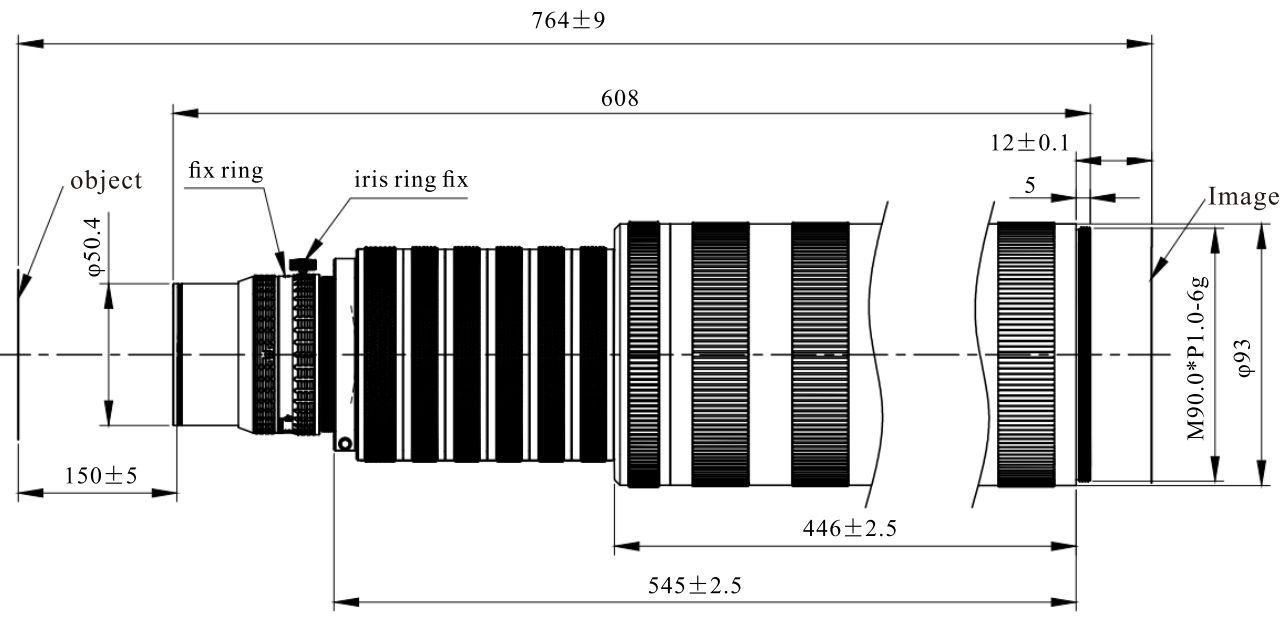

Dimensions (mm)
