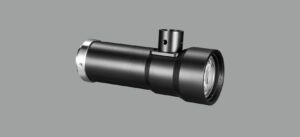

High Performance Dual Telecentric Lens

* SCP series is designed for line scan with big sensor size and high accuracy

* Max support 24K line scan sensor or 120MP area scan sensor

* Big iris, low distortion, very length field of depth, excellent performance

* Big aperture with best pixel resolution

Add to quote
Category:

High Performance Dual Telecentric Lens Catalogue Download

♦ Model Description
♦ Parameter
Please click the item no. for more data information.

Sensor size Item No. FOV (Φmm) Mag. (x) WD (mm) F/# Image MTF30 (lp/mm) DoF     (mm) Image      distortion       (% Max) Telecentric degree            (°Max) I/O  (mm) Total length (mm) Mount N.W   (kg) Iris adjust Coaxial structure
2/3″ SBS-SCP65-0.5 22 0.500 65±1 5.0 >160 ±0.8@F5 <0.1 <0.1 189±1 106.7 C 0.2 N N
2/3″ SBS-SCP65-0.5-I 22 0.500 65±1 5.0 >160 ±0.8@F5 <0.1 <0.1 189±1 106.7 C 0.2 N Y
2/3″ SBS-SCP85-0.4 27.5 0.400 85±2 4.5 >205 ±[email protected] <0.03 <0.1 245±2 142.4 C 0.3 N N
2/3″ SBS-SCP85-0.4-I 27.5 0.400 85±2 4.5 >205 ±[email protected] <0.03 <0.1 245±2 142.4 C 0.3 N Y
2/3″ SBS-SCP110-0.3 37 0.300 110±2 3.75 >220 ±[email protected] <0.1 <0.1 273±2 145.5 C 0.4 Y N
2/3″ SBS-SCP110-0.3-I 37 0.300 110±2 3.75 >220 ±[email protected] <0.1 <0.1 273±2 145.5 C 0.4 Y Y
2/3″ SBS-SCP166-0.166 66 0.166 166±3 3.3 >260 ±[email protected] <0.1 <0.1 329±3 146.5 C 0.6 Y N
4/3″ SBS-SCP39-2 11.5 2.000 39±1 9.5 >85 ±[email protected] <0.1 <0.1 189±1 133.4 C 0.2 N N
4/3″ SBS-SCP39-2-I 11.5 2.000 39±1 9.5 >85 ±[email protected] <0.1 <0.1 189±1 133.4 C 0.2 N Y
4/3″ SBS-SCP83-0.55 42 0.550 83±1 8.0 >110 ±1.1@F8 <0.1 <0.1 198±1 97.5 C 0.2 N N
35mm Full SBS-SCP378-0.462-35 94 0.462 378±4 8.0 >115 ±1.5@F8 <0.1 <0.1 847±4 456.9 M58 3.7 N N
35mm Full SBS-SCP378-0.462-35-I 94 0.462 378±4 8.0 >115 ±1.5@F8 <0.1 <0.1 847±4 456.9 M58 3.7 N Y
