GigE PoE camera

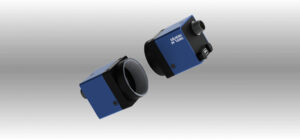

The MERCURY family’s CCD/CMOS cameras target at industrial machine vision applications, the MERCURY family cameras are covered with full metal housing and equipped with cable locking devices. Thanks to the body size 29mm x 29mm x 29mm and the weight less than 42g, the MERCURY family cameras can be easily deployed under various industrial circumstances or integrated into automatic devices like robot arms to accomplish machine vision tasks like locating, measuring, defect detecting, object recognizing, etc.

Add to quote
Category:
With the MERCURY series, you can choose the most popular data interfaces in the vision market: the popular Gigabit Ethernet interface with 100-meter cable length, the new USB 3.0 interface with plug and play capability, and the USB2.0 interface with plug and play capability. All DAHENG IMAGING’s MERCURY cameras come with an option to provide camera power and data via a single cable. They also offer separate input/output ports for triggering or flash control. The MERCURY family comes with a long list of firmware features.

  • Ultra small,light and robust
  • Compact and durable
  • 1 input and 1 output with opto-isolated, 2 programmable GPIOs
  • Support Gigabit Ethernet,USB3.0,USB2.0
  • A wide range of models available,support various CCD and CMOS sensors
  • Meet CE, RoHS and FCC (except MER-Ux Series) standards
  • Support GigEVision, USB3Vision,GenlCam and third-party software like HALCON, MERLIC and LabVIEW
MER-Gx-P
Model Interface Resolution

(H×V)

 Frame Rate Sensor Pixel Size Pixel Bit Depth Mono/Color
MER-030-120GC-P GigE PoE 656×492 120 fps 1/4″ Sony ICX618 global shutter CCD 5.6μm × 5.6μm 8/12bits Color
MER-031-300GM/C-P GigE PoE 640×480 300 fps 1/4″ ON PYTHON300 global shutter CMOS 4.8μm × 4.8μm 8/10bits Mono/Color
MER-031-300GM-P NIR GigE PoE 640×480 300 fps 1/4″ ON PYTHON300 global shutter CMOS 4.8μm × 4.8μm 8/10bits Mono, NIR
MER-032-120GM/C-P GigE PoE 656×492 120 fps 1/3″ Sharp RJ33B global shutter CCD 7.4μm × 7.4μm 8/12bits Mono/Color
MER-041-302GM/C-P GigE PoE 720×540 302 fps 1/2.9″ Sony IMX287 global shutter CMOS 6.9μm × 6.9μm 8/12bits Mono/Color
MER-050-200GC-P GigE PoE 800×600 200 fps 1/3.6″ ONPYTHON500 global shutter CMOS 4.8μm × 4.8μm 8/10bits Color
MER-051-120GM/C-P GigE PoE 808 × 608 120 fps 1/3.6″ ONPYTHON480 global shutter CMOS 4.8μm × 4.8μm 8/10bits Mono/Color
MER-125-30GM/C-P GigE PoE 1292×964 30 fps 1/3″ Sony ICX445 global shutter CCD 3.75μm × 3.75μm 8/12bits Mono/Color
MER-131-75GM/C-P GigE PoE 1280×1024 75 fps 1/2″ ONPYTHON1300 global shutter CMOS 4.8μm × 4.8μm 8/10bits Mono/Color
MER-131-75GM-P NIR GigE PoE 1280×1024 75 fps 1/2″ ONPYTHON1300 global shutter CMOS 4.8μm × 4.8μm 8/10bits Mono, NIR
MER-132-43GM/C-P GigE PoE 1292×964 43fps 1/3″ Sharp RJ33Jglobal shutter CCD 3.75μm × 3.75μm 8/12bits Mono/Color
MER-133-54GM/C-P GigE PoE 1280 × 960 54 fps 1/3″ ON AR0135 global shutter CMOS 3.75μm × 3.75μm 8/10bits Mono/Color
MER-200-20GM-P GigE PoE 1628×1236 20 fps 1/1.8″ Sony ICX274 global shutter CCD 4.4μm × 4.4μm 8/12bits Mono
MER-201-25GM/C-P GigE PoE 1628×1236 25 fps 1/1.8″ Sharp RJ31N global shutter CCD 4.4μm × 4.4μm 8/12bits Mono/Color
MER-231-41GM/C-P GigE PoE 1920 × 1200 41 fps 1/1.2″ Sony IMX249 global shutter CMOS 5.86μm × 5.86μm 8/10bits Mono/Color
MER-232-48GM-P NIR GigE PoE 1920 × 1200 48 fps 2/3″ ON PYTHON 2000 global shutter CMOS 4.8μm × 4.8μm 8/10bits Mono, NIR
MER-500-14GM/C-P GigE PoE 2592×1944 14 fps 1/2.5″ ON MT9P031/MT9P006 rolling shutter CMOS 2.2μm × 2.2μm 8/10bits Mono/Color
MER-503-20GM/C-P GigE PoE 2448 × 2048 20 fps 2/3″ Sony IMX264 global shutter CMOS 3.45μm × 3.45μm 8/10bits Mono/Color
MER-504-10GM/C-P GigE PoE 2448 × 2048 10 fps 2/3″ Sharp RJ32S global shutter CCD 3.45μm × 3.45μm 8/12bits Mono/Color
MER-530-20GM-P NIR GigE PoE 2592× 2048 20 fps 1″ ON PYTHON 5000 global shutter CMOS 4.8μm × 4.8μm 8/10bits Mono, NIR
MER-531-20GM/C-P GigE PoE 2592× 2048 20 fps 1″ ON PYTHON 5000 global shutter CMOS 4.8μm × 4.8μm 8/10bits Mono/Color
MER-630-16GM/C-P GigE PoE 3088 × 2064 16 fps 1/1.8″ Sony IMX178 rolling shutter CMOS 2.4μm × 2.4μm 8/12bits Mono/Color
MER-1070-10GM/C-P GigE PoE 3840×2748 10 fps 1/2.3″ ONMT9J003 rolling shutter CMOS 1.67μm × 1.67μm 8/12bits Mono/Color
MER-1220-9GM/C-P GigE PoE 4024 × 3036 9 fps 1/1.7″ Sony IMX226 rolling shutter CMOS 1.85μm × 1.85μm 8/12bits Mono/Color
MER-1520-7GC-P GigE PoE 4608×3288 7 fps 1/2.3″ ONMT9F002 rolling shutter CMOS 1.4μm × 1.4μm 8/12bits Color
MER-2000-5GM/C-P GigE PoE 5496 × 3672 5 fps 1″ Sony IMX183 rolling shutter CMOS 2.4μm × 2.4μm 8/12bits Mono/Color
Mechanical Specifications Electrical Specifications
Weight                            75g

Dimensions                   29mm × 29mm × 38.3mm

 Power requirement               12 VDC (8-PIN connector) or PoE

I/Os                                          Opto-isolated 1 input/1 output, 2 GPIOs

Data interface                        RJ45 with locked

Power consumption              <3W@12VDC, <3.75W@PoE

(MER-500-14GM/C-P:<2W@12VDC, <2.5W@PoE)
Environmental Specifications Optical Specifications
Operating temp                 0°C ~ +45°C

Operating humidity           10% ~ 80%

Storage temp.                   -20°C ~ +70°C

  Lens mount             C / CS–Mount
